CyberServe Xeon SP1-110S G3®

Ideal for virtualisation, cloud computing, enterprise server. 2x PCI-E 4.0 x16 slots. Intel® Ethernet Controller X550 2x 10GbE RJ45. Redundant power supplies.

  • Key Applications - Virtualisation, Cloud Computing, Enterprise Server, Data Centre Optimised, Database Processing and Storage

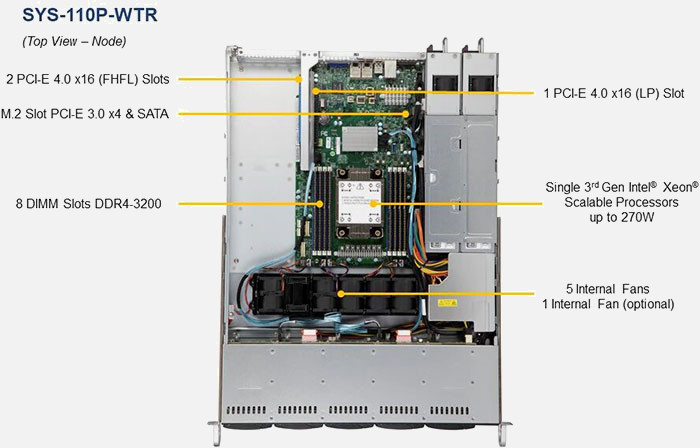

  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

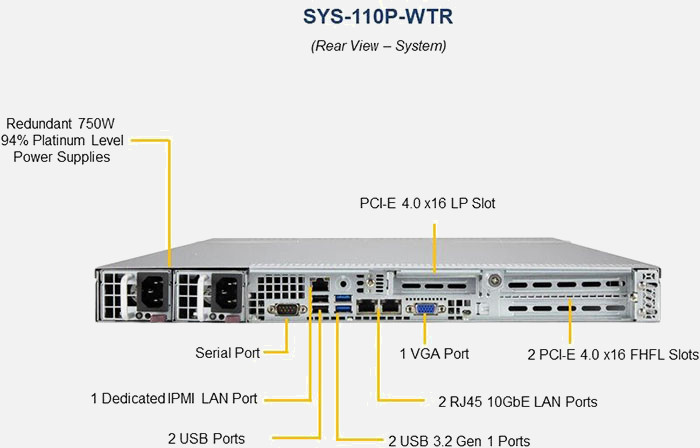

  • 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • Intel® Ethernet Controller X550 2x 10GbE RJ45

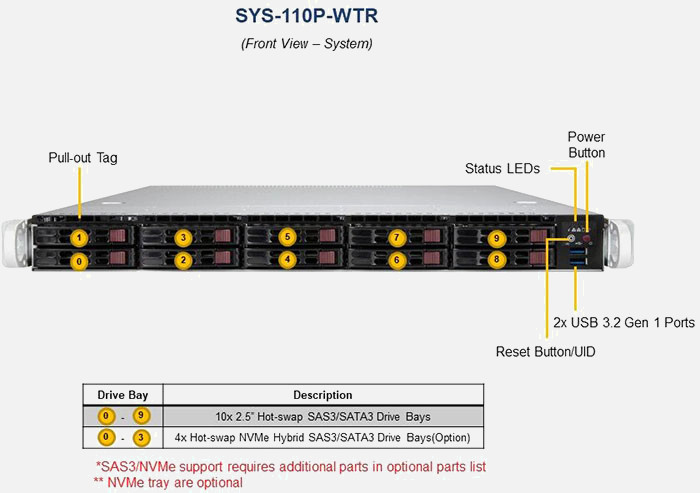

  • 10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
  • Redundant Platinum 750W Power Supply
  • Supports up to 10x SATA3 2.5" Hard Drives
  • Configurable with 1x Intel Intel Xeon Scalable Processors 3rd Generation
  • Supports up to 8 modules of DDR4 ECC Registered Memory
  • 1x PCI Express Expansion Slots
  • Configurable with up to 1TB Server Memory



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Based on Tesla GPU

GPU SuperComputing servers offer massive processing power and HPC performance, considerably accelerating applications.

Supports SATA Drives

This system can be configured with SATA drives for cost-effective 12gb/s storage.

Supports NVMe Drives

This system can be configured with NVMe drives, which are capable of significantly better performance than SATA and SAS.

Small Form Factor Storage

The CyberServe Xeon SP1-110S G3 boasts high density storage and ultimate energy efficiency, catering for up to 10x High-Performance 2.5" SSD or Hard Drives

Supports 3rd Gen Intel Xeon SP

CyberServe Xeon SP® servers support game-changing, high performance 3rd Gen Intel Xeon®Scalable processors.

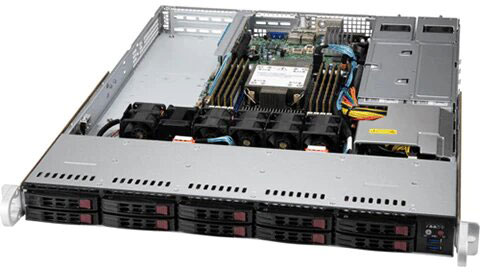

The CyberServe Xeon SP1-110S G3 is a 1U rackmount server configurable with 1x Xeon Scalable Processor - Gen 3 - Single Socket series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP1-110S G3 has 10x 2.5" SATA and NVMe Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 8x DDR4 ECC Registered memory banks providing up to 1TB of high-performance server memory. The CyberServe Xeon SP1-110S G3 boasts as just a few of its core features.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP1-110S G3 can have any of its 10 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP1-110S G3 can have any of its 10 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Storage Technology

The CyberServe Xeon SP1-110S G3 supports 10x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the CyberServe Xeon SP1-110S G3 can have any of its 10 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The CyberServe Xeon SP1-110S G3’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe Xeon SP1-110S G3 to match your application I/O demands and network infrastructure with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Intel 100 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors, Mellanox ConnectX-6 Series Ethernet Adaptors.

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP1-110S G3 is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP1-110S G3 at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the CyberServe Xeon SP1-110S G3 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The CyberServe Xeon SP1-110S G3 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe Xeon SP1-110S G3 with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Intel 100 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors, Mellanox ConnectX-6 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP1-110S G3 is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the CyberServe Xeon SP1-110S G3 can have any of its 10 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
