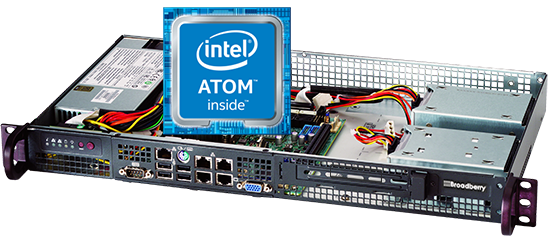

Atom Servers

Perfect Appliance Servers the CyberServe range of Intel Atom based rack servers are designed for light processing tasks.

Designed and built for the appliance server market where an extremely low power consumption of less than 10W is required and 100% server up-time is of up most importance. Configurable with up to 64GB DDR4 RAM and 16 processing cores.

Configurable with no moving parts, our Atom range of servers are virtually silent and extremely cool.


CyberServe Atom-100i

Mini Atom Server Appliance (Optional Rackmount kit)

Form Factor:
1U
Drive Bays:
Fixed Drives
Drive Interface:
SATA
Server Processor:
Atom
HDD Size:
2.5" Drives
Features:
Ultra Low Power, Short Depth
Max RAM Capacity:
64GB
Configure From: $683
Configure
Short Depth
CyberServe Atom-104i

Short-Depth 1U Atom Server Appliance with 4 drive bays, 1x PCIe Slot

Form Factor:
1U
Drive Bays:
Fixed Drives
Drive Interface:
SATA
Server Processor:
Atom
HDD Size:
2.5" Drives
Features:
Ultra Low Power, Short Depth
Max RAM Capacity:
64GB
Configure From: $729
Configure
Short Depth Font I/0 Ports
CyberServe Atom 104F

Short-Depth 1U Atom Server Appliance with Front I/O Ports, 1x PCIe Slot

Form Factor:
1U
Drive Bays:
Fixed Drives
Drive Interface:
SATA
Server Processor:
Atom
HDD Size:
2.5" Drives
Features:
Ultra Low Power, Short Depth, Front I/O Ports
Max RAM Capacity:
64GB
Configure From: $737
Configure
Short Depth Rackmount or Tower
CyberServe Atom-101i

Mini Atom Server Appliance (Optional Rackmount kit), with 1x PCIe Slot.

Form Factor:
1U
Drive Bays:
Fixed Drives
Drive Interface:
SATA
Server Processor:
Atom
HDD Size:
2.5" Drives
Features:
Ultra Low Power, Short Depth
Max RAM Capacity:
64GB
Configure From: $799
Configure
CyberServe Atom-104S

1U Atom Low Powered Server with 4 hot swap drive bays.

Form Factor:
1U
Drive Bays:
Hot-Swap Drives
Drive Interface:
SATA
Server Processor:
Atom
HDD Size:
3.5" Drives
Features:
Ultra Low Power, Full Height/Length Expansion, Redundant Power Supply - Optional
Max RAM Capacity:
64GB
Configure From: $937
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918



The CyberServe Atom® range of appliance severs deliver best-in-class performance and capabilities in meeting the essential computing demand from our customers. These ultra-low powered servers are small in size, virtually silent, and can be configured with no moving parts for the ultimate in server reliability.

Designed for applications that don't require much processing power or the ability to store vast amounts of data, the CyberServe Atom® range excels as a mail server, spam server, network appliance or any other application that benefits from its maintenance free and ultra-low power characteristics.

Our rack servers powered by Atom processor technology draw incredibly low idle and average power, scaling performance from 1.7GHz to 2.4GHz whilst drawing 6-20W.

CyberServe Atom Servers are Ideal for:

Boasting extremely low-power consumption and virtually silent, the Broadberry CyberServe range of Intel Atom® based servers are ideal for these applications.

  • Storage Appliance
  • Network Appliance
  • Print Server
  • File Server

As technological advancements continue to progress, new methods are found to optimize infrastructure to deliver not only more services but improved services at a much lower total cost.

The Broadberry CyberServe Atom range is laser focused on delivering platform solutions that can aid you in optimising your infrastructure using a flexible, adaptable, software compatible server platform based on Intel Xeon and Intel Atom processors.

Intel’s Industry-Leading 22 nm Silicon Technology

Delivering tight-knit integration while enhancing energy efficiency by up to 6 times in comparison to Intel Atom processor S1200 product family.

Feature-Rich SoC

The built-in GbE, SATA and USB ports streamline the design of workload-optimized micro servers and aid in improving performance, energy efficiency and density.

Complete Platform Solutions

Ranging from integrated management functionality to the Intel® FM5224 Microserver Switch, there is a complete support for all platform solutions.

Processor Power (TDP) Frequency (Boost10) Cores Memory Channels Memory Type Max. Memory Capacity Max. PCIe Lanes Ports
Intel Atom® Processor C3955 32W 2.1 GHz (2.4 GHz) 16 2 DDR4/2400 256 GB 16

4x10/2.5/1 GbE, 8 x USB, 16 x SATA

Intel Atom® Processor C3858 25W 2.0 GHz (2.0 GHz) 12 2 DDR4/2400 256 GB 16 4x10/2.5/1 GbE, 8 x USB, 16 x SATA
Intel Atom® Processor C3758 25W 2.2 GHz (2.2 GHz) 8 2 DDR4/2400 256 GB 16 4x10/2.5/1 GbE, 8 x USB, 16 x SATA
Intel Atom® Processor C3558 16W 2.2 GHz (2.2 GHz) 4 2 DDR4: 2133 256 GB 12 2x10/2.5/1GbE + 2x2.5/1GbE, 8 x USB, 12 x SATA
Intel Atom® Processor C3338 9W 1.5 GHz (2.2 GHz) 2 1 DDR4: 1866 128 GB 10 4x2.5/1 GbE, 8 x USB, 10 x SATA

Extreme Density and Energy-Efficiency for Low-End, Scale-Out Workloads

Cloud providers are constantly seeking more efficient methods of dealing with the demands on their infrastructure. Such as having to quickly deliver new services, dealing with huge data growth and maintaining manageable costs.

Broadberry CyberServe servers based on Intel® Atom® processors provide leadership performance and performance per watt with the flexibility to handle a wide range of workloads and peak demands.

Certain lightweight, scale out workloads can occasionally be better hosted on a larger number of smaller servers that have been designed for maximum power efficiency. Examples of these types of workloads include simple content delivery, basic dedicated hosting and low-end static web serving. To address this need, Broadberry developed a variety of extreme low-power systems to support an emerging server category – micro servers. With up to 1,000 nodes 1 per rack and shared power, cooling, and networking resources, micro servers can help you improve data centre efficiency by right-sizing infrastructure for relatively light processing requirements.

The Intel® Atom™ processor C3000 product family delivers a major leap forward for micro server performance and efficiency. Vastly improving performance and efficiency levels, this second-generation 64-bit SoC provides seven times the performance of previous Intel Atom processor generations while improving performance per watt by up to 4x.

Not only does it offer more cores, more memory capacity and more I/O resources but its power envelope is as low as 5 watts. It also provides an increased platform flexibility as it features integrated Gigabit Ethernet (GbE), SATA and USB ports.

The Intel Atom processor C3000 product family joins the Intel® Xeon® processor E3 v6 product family to power the next generation of micro- servers across a range of lightweight web-scale workload requirements. Intel Atom processor C3000 series provide datacentre class features including support for 64-bit computing, 4 Intel® Virtualization Technology, 5 and Error Correcting Code (ECC) memory. They also support the industry-standard x86 instruction set, delivering complete software compatibility with mainstream servers. This gives you the flexibility to right-size your infrastructure without any limiting software mobility as your applications continue to evolve.

Optimized Platform Support

Enjoy complete micro server platform solutions that will greatly simplify implementation, advance the overall efficiency and allow for high node density. Some of these new innovations includes:

Simplified Manageability

Featuring a new Intel enabled companion chip, its now possible to manage four micro server nodes with a solitary Management Module Controller. Reducing chip counts and platform power while boosting density. The power can be monitored and controlled at various levels (node, platform rack and data centre) via the Core Running Power Limiting (RAPL) capability.

Improved Memory Density

A new compact connector allows for memory DIMMs to be stacked on top of each other. This is to save space on the board and deliver even higher density.

ONP optimized SDN Chassis-Level Switch

Enjoy better workload traffic control, bandwidth, Quality of Service, higher node density and low latency necessary for more efficient micro server implementations via Software Defined Networking benefits provided by the Intel® FM5224 Ethernet Switch. You are able to consolidate network links from multiple nodes to this top-of-rack switch in order to reduce power consumption and the overall cost. This switch supports flexible and adaptable bandwidth allocation dense, network-intensive computing environments with 1 GbE, 2.5 GbE, 10 GbE, and 40 GbE interfaces.


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:
