Windows Storage Server NAS, iSCSI SAN, DAS and Backup Storage

The multi-award winning CyberStore WSS range comes pre-configured with Microsoft Windows Storage Server 2019.

Our WSS range of iSCSI SAN/NAS storage appliances comes with great storage features such as Storage Migration Service and Failover Clustering.

Range Features:

  • Performance improvements
  • Tremendous storage capacity
  • Pre-configured with WSS 2019

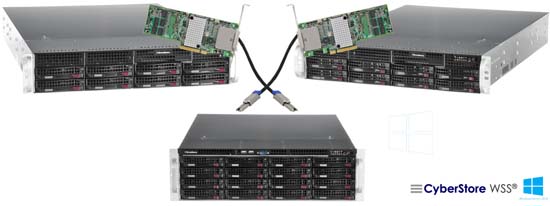

Windows Storage Server Failover Cluster

Configure up to 2 header nodes + storage based on Windows Storage Server 2016

Form Factor:
Failover Cluster
Drive Size:
3.5" Storage Servers
Drive Bays:
250 Drive Bays
Storage Capacity:
3.8PB
Configure From: $0
Configure
CyberStore 212WSS-NVME

2U, 12 Bay, NVME Windows Storage Server 2019 iSCSI SAN / NAS, Windows Storage Spaces

Form Factor:
2U
Drive Size:
3.5" Storage Servers
Drive Bays:
12 Drive Bays
Storage Capacity:
256TB
Configure From: $4,571
Configure
Multi-Award Winner
CyberStore 212S WSS iSCSI SAN / NAS

2U, 12 Bay Windows Storage Server 2019 iSCSI SAN / NAS, Windows Storage Spaces

Form Factor:
2U
Drive Size:
3.5" Storage Servers
Drive Bays:
12 Drive Bays
Storage Capacity:
192TB
Configure From: $5,027
Configure
CyberStore 316S WSS iSCSI SAN / NAS

3U, 16 Bay Windows Storage Server 2019 NAS/iSCSI SAN, Windows Storage Spaces

Form Factor:
3U
Drive Size:
3.5" Storage Servers
Drive Bays:
16 Drive Bays
Storage Capacity:
256TB
Configure From: $5,548
Configure
Multi-Award Winner
CyberStore 224S WSS iSCSI SAN / NAS

2U, 24 Bay Windows Storage Server WSS iSCSI SAN / NAS

Form Factor:
2U
Drive Size:
2.5" Storage Servers
Drive Bays:
24 Drive Bays
Storage Capacity:
360TB
Configure From: $5,590
Configure
Best Seller Multi-Award Winner
CyberStore 424S WSS iSCSI SAN / NAS

4U, 24 Bay Windows Storage Server 2019 NAS / iSCSI SAN, Windows Storage Spaces

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
24 Drive Bays
Storage Capacity:
384TB
Configure From: $6,349
Configure
CyberStore 436S WSS iSCSI SAN / NAS

Large Capacity 4U 36 Bay Windows Storage Server iSCSI SAN / NAS, Windows Storage Spaces

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
36 Drive Bays
Storage Capacity:
576TB
Configure From: $6,748
Configure

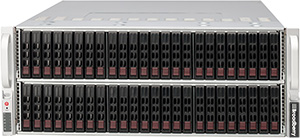

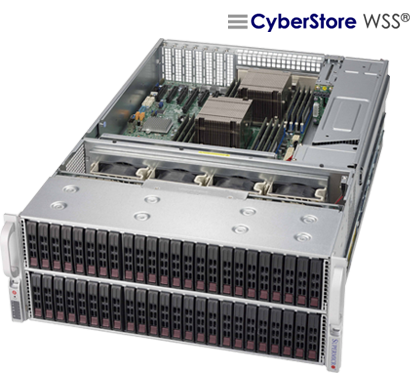

CyberStore 472S WSS iSCSI SAN / NAS

Ultra High-Density 4U 72 Bay Windows Storage Server iSCSI SAN / NAS, Windows Storage Spaces

Form Factor:
4U
Drive Size:
2.5" Storage Servers
Drive Bays:
72 Drive Bays
Storage Capacity:
1.1PB
Configure From: $7,196
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

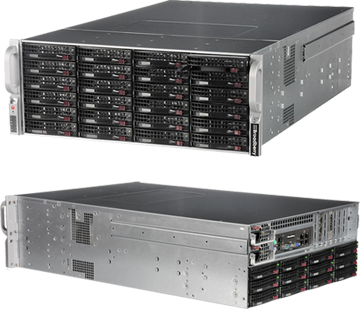

The Broadberry CyberStore WSS® range of iSCSI SAN / NAS Unified storage appliances include 1U-4U server offerings boasting huge raw storage capacity in a single storage unit.

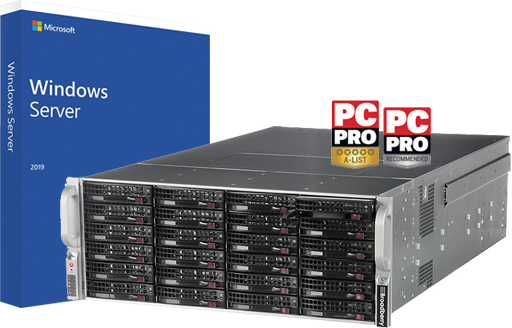

Pre-loaded and configured with Microsoft's ground-breaking Windows Storage Server 2019 operating system, the CyberStore WSS® range has been designed from the ground up to harness the advantages of this feature-rich storage appliance OS.

CyberStore WSS® Storage Appliances:

CyberStore storage servers can be optimized for a wide number of uses, including:

  • IP Surveillance
  • ISPs & Cloud Hosting
  • Education Sector
  • Small Businesses

The Broadberry CyberStore WSS® range is a Network Attached Storage (NAS) and iSCSI SAN range of storage appliances ranging from 1U to 4U. Based on ultra-reliable hardware from leading component manufacturers, the CyberStore WSS® is ideal for unified storage. With a massive selection of customization options available, this flexible solution can be configured for almost any storage application, from a small business storage server to high availability enterprise-class storage appliance with built-in failover. Since 2012 the CyberStore WSS® range has consistently beaten Fortune-100 server OEM's as the best storage appliance available.

From the BBC archiving the programmes we grew up watching, to CERN using them to store big data collected researching how our universe was created, the potential uses of the CyberStore range are almost unending.

In today's world, storage appliances are used in almost every aspect of our lives across all market sectors and industries. The flexibility and configurability of Broadberry CyberStore storage servers make them superb options in a wide range of markets.

CyberStore appliances are widely used in the education sector due to their competitive pricing (compared to tier ones) and the data deduplication feature that compresses data by up to 70%. We supply our storage solutions to all of the top 10 universities in the UK including Oxford and Cambridge, as well as many other colleges and schools.

Another big market for the CyberStore WSS range is IP Surveillance. With storage requirement rapidly growing as HD cameras become the norm, the renowned reliability, performance and high availability of the CyberStore WSS range make it the perfect solution to store CCTV data securely and cost-effectively.


Windows Storage Server 2019 introduces an impressive range of new features in a number of areas. Below are, in no particular order, our top 8.

Persistent Memory support for Hyper-V Virtual Machines

In order to leverage the high throughput and low latency of persistent memory in VMs, it can now be projected directly into virtual machines, significantly lessening database transaction latency or reducing recovery times for low latency in-memory databases on failure.

Linux containers on Windows

With WSS 2019 you are now able to run Windows and Linux-based containers on the same container host, using the same docker daemon. This allows for you to have a heterogenous container host environment whilst still giving application developers flexibility.

Windows Defender Advanced Threat Protection (ATP)

The ATP deep platform sensors and response actions expose memory and kernel level attacks. They respond through suppressing malicious files and terminating malicious processes.

Windows Defender ATP Exploit Guard is a new set of host-intrusion prevention capabilities. The four components of Windows Defender Exploit Guard are designed to lock down the device against a large range of attacks and block behaviours often used in malware attacks, while simultaneously balancing security risk and productivity needs.

With Network protection, the endpoint is safeguarded against web-based threats via blocking any outbound process on the device and non-trusted hosts/IP addresses through Windows Defender Smartscreen.

Sensitive data is protected by controlled folder access, which blocks non-trusted processes from accessing your protected folders.

Windows Defender Application Control (also known as Code Integrity (CI) policy) was a feature present in Windows Server 2016. While hailed as a great concept, feedback from users had suggested it was difficult to deploy. This issue is addressed in Windows Storage Server 2019. Default CI policies have been built, which allows for Windows in-box files and Microsoft applications. It blocks known executables that can bypass CI.

Container Improvements

Improved Integrated Identity

Integrated Windows authentication in containers has been made simpler and more reliable, addressing many limitations present in previous versions of Windows Server.

Better Application Compatibility

Container Windows-based applications have become a lot easier. The app compatibility for the existing windowsservercore image has been enhanced. For applications with additional API dependencies, you now have a third base image: windows.

Reduced Size and Higher Performance

The base container image download sizes, size on disk and start-up times have all been improved, speeding up container workflows.

Management Experience Using Windows Admin Center (Preview)

It is now easier than ever before to view which containers are running on your computer and manage individual containers with a new extension for Windows Admin Center. Simply search for the “Containers” extension in the Windows Admin Center public feed.

Built-in Support for Kubernetes

Windows Server 2019 carries on the improvements to storage, computing and networking from the semi-annual channel releases required to support Kubernetes on Windows.

Container Networking in Windows Server 2019 significantly boosts the usability of Kubernetes on Windows by enhancing platform networking resiliency and support of container networking plugins.

Encrypted Networks

Virtual network encryption allows for the encryption of virtual network traffic between VMs which communicate with each other within subnets that have been marked as Encryption Enabled. Also utilized is Datagram Transport Layer Security (DTLS) on the virtual subnet to encrypt packets. DTLS protects against any tampering, forgery or eavesdropping by anyone with access to the physical network.

Failover Clustering

Low Extra Delay Background Transport

The Low Extra Delay Background Transport (LEDBAT) is a latency optimized, network congestion control provider designed to automatically yield bandwidth to users and applications, whilst consuming the entire bandwidth available when the network is not in use. This technology is meant for use in deploying large, critical updates across an IT environment without negatively impacting user facing services and associated bandwidth.


Microsoft's newest file system, the Resilient File System (ReFS) has experienced many improvements. Designed to maximize data availability, effectively scale large data sets across diverse workloads and deliver data integrity through resiliency to corruption. It aims to deal with an expanding set of storage scenarios and establish a foundation for future innovations.

Resiliency and Scalability

ReFS possesses a number of new features which can accurately detect corruptions and mend those corruptions while still remaining online, aiding in delivering improved integrity and availability for your data.

  • Integrity-streams Checksums are used for metadata and data. This gives ReFS the ability to reliably catch corruptions.
  • Salvaging data Repair processes are localized to the area of corruption and performed online. This means no volume downtime will be required.
  • Proactive error correction As well as validating data prior to reads and writes, ReFS introduces a scrubber (a data integrity scanner). This scrubber periodically scans the volume, detecting latent corruptions and proactively putting repairs of corrupt data into motion.

Scalability

ReFS is designed to support humungous data sets (possibly millions of terabytes) without it having a negative impact performance, allowing it to achieve a greater scale than previous file systems.

Performance

ReFS not only provides resiliency improvement, but it also introduces new features for performance-sensitive and virtualized workloads. Real-time tier optimization, sparse VDL and block cloning are great examples of the evolving capabilities of ReFS, which are designed to support dynamic and diverse workloads:

Mirror-accelerated parity This feature provides blazing fast performance in addition to capacity efficient storage for your data.

ReFS delivers this by dividing a volume into two logical storage groups, known as tiers. Each of these tiers can possess their own drive and resiliency types, enabling each tier to optimize for either performance or capacity. Examples of configurations include:

Performance Tier Capacity Tier
Mirrored SSD Mirrored HDD
Mirrored SSD Parity SSD
Mirrored SSD Parity HDD

After these tiers are configured, ReFS uses them to provide super-fast and capacity efficient storage for hot data and cold data respectively:

  • All writes will occur in the performance tier and big blocks of data that are left in the performance tier will be efficiently and effectively moved to the capacity tier in real-time.
  • Accelerated VM operations ReFS features new functionalities specifically designed to improve the performance of virtualized workloads. Block cloning accelerates copy operations enabling quick low-impact checkpoint merge operations. With Sparse VDL, ReFS can zero files rapidly, lowering the amount of time needed to create fixed VHDs from tens of minutes to just a few seconds.
  • Variable cluster sizes ReFS supports 4K and 64K cluster sizes. 4K is the size recommended for the majority of deployments, however 64K cluster are more appropriate for massive, sequential IO workloads.

Our Storage Spaces Direct 2019 Certified Nodes are the perfect option if you require highly scalable software defined storage at a significantly lower expense than traditional SAN or NAS arrays.

  • Fault Tolerance
  • Unrivaled Performance
  • Efficiency
  • Fast and Easy Setup
  • High Availability
  • High Scalability
  • Easy Management

Storage Spaces Direct


3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Up to Dual Xeon Processors

Designed for optimal performance, the CyberStore WSS range can be configured with a single Xeon SP processor, or on larger units up to 2x Xeon SP processors.

Daisy Chain CyberStore Appliances

Increase the storage capacity of your CyberStore WSS storage appliance by daisy-chaining additional CyberStore JBOD units, delivering virtually unlimited storage.

With IPMI Remote Management

All Broadberry CyberStore WSS appliances have built-in iPMI functionality, enabling complete control and management of your server through IP.

Built with Leading Brand Components

All components in the Broadberry CyberStore WSS range are sourced from leading manufacturers who take reliability as seriously as we do.

Built in Thin Provisioning

Expand your storage pools online as and when you need to with the CyberStore WSS' built in Thin Provisioning feature.

Nano Server

Nano Server will have a 93% smaller VHD size, 92% fewer critical bulletins and 80% fewer required reboots.

Windows Server & Hyper-V Containers

The CyberStore WSS range will provide native virtualization capabilities with two kinds of native containers, Hyper-V and Windows Server.

Host Guardian Service & Shielded VMs

Enables shielded virtual machines and protects the data on them from unauthorized access - even from Hyper-V administrators.

PowerShell Direct

PowerShell Direct enables you to run PowerShell commands in the guest OS of a VM without needing to go through the network layers.

Linux Secure Boot

The CyberStore WSS now bosts the ability to enable secure boot for VMs with Linux guest operating systems.

Hot Add & Remove Memory

The CyberStore WSS range can add and remove virtual memory and virtual network adapters while the virtual machine is running

Built in File Replication Service

Windows Storage Server Work Folders works very similar to Dropbox. Install this role on your CyberStore WSS and get a fully functional secure file replication service.

Parallel Rebuild Failed Storage

If you've ever had a disk fail in a RAID array you'll know the rebuild time can take ages, especially with large disks. Rebuild time is now greatly reduced.

Network Adaptor Teaming

The CyberStore WSS range can be configured with up to 16 network adaptors for impressive network performance and availability.


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.
