JBOD Storage - (Direct Attached)

Our Direct Attached JBOD Storage appliances allow you to expand your current storage pool with enterprise-grade storage via ultra-fast SAS connectivity.

An internal HBA (Host Bus Adapter) available in PCI-Express or PCI-X is required to connect a DAS system via a Cable that is usually no more that 5 meters away for the server or workstation it is serving.


Compatible With All Leading Operating Systems

CyberStore 212S-JBOD Storage

2U, 12 Bay JBOD (Direct Attached) Storage

Form Factor:
2U
Drive Size:
3.5" Storage Servers
Drive Bays:
12 Drive Bays
Storage Capacity:
192TB
Configure From: $2,957
Configure
CyberStore 316S-JBOD Storage

3U, 16 Bay (JBOD) Direct Attached Storage

Form Factor:
3U
Drive Size:
3.5" Storage Servers
Drive Bays:
16 Drive Bays
Storage Capacity:
256TB
Configure From: $3,213
Configure
CyberStore 424S-JBOD Storage

4U, 24 Bay JBOD (Direct Attached) Storage

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
24 Drive Bays
Storage Capacity:
384TB
Configure From: $3,737
Configure
CyberStore 224S-JBOD Storage

2U, 24 Bay JBOD (Direct Attached) Storage

Form Factor:
2U
Drive Size:
2.5" Storage Servers
Drive Bays:
24 Drive Bays
Storage Capacity:
360TB
Configure From: $3,815
Configure
Best Seller Short Depth
CyberStore-SAS424 JBOD Storage with Dual Controller

4U, 24 Bay JBOD (DAS) Direct Attached Storage - Dual Controller

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
24 Drive Bays
Storage Capacity:
384TB
Configure From: $3,824
Configure
CyberStore 436S-JBOD Storage

4U, 36 Bay JBOD - (Direct Attached) Storage

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
36 Drive Bays
Storage Capacity:
576TB
Configure From: $4,860
Configure
CyberStore 444S-JBOD Storage

4U, 44 Bay JBOD (Direct Attached) Storage

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
44 Drive Bays
Storage Capacity:
704TB
Configure From: $5,708
Configure

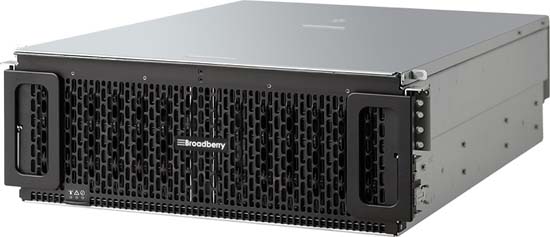

CyberStore 460S-JBOD Storage with Dual Controller

4U, 60 Bay JBOD (DAS) Direct Attached Storage - Dual Controller 12GB/SAS

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
60 Drive bays
Storage Capacity:
960TB
Configure From: $6,486
Configure
CyberStore 4U102 12GB SAS/SSD JBOD

The Next Generation Hybrid Platform for Software-Defined Storage

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
102 Drive Bays
Storage Capacity:
1.6PB
Configure From: $10,232
Configure


Compatible with all major operating systems, the CyberStore range of open storage servers can be pre-configured with these storage operating systems.

Configure your CyberStore storage appliance with a wide range of open-source operating systems for an enterprise-grade, cost-effective storage solution.



The Broadberry CyberStore range of unified storage servers support all major file systems for maximum compatibility.

NTFS
REFS
XFS
EXT2/3/4
ZFS
CEPH

LUSTRE
GLUSTER
BEEGFS
GPFS
MOOSEFS
HDFS


The Broadberry CyberStore range of unified storage servers are completely compatible with leading database engines.


Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918



The Broadberry CyberStore DAS® range of direct attached storage appliances include 1U-4U server offerings boasting up to 360TB of raw storage capacity in a single storage unit.

Built for high performance storage applications, this range boasts ultra-high IOPS rather by making use of 12Gb/s SAS and the latest Intel Xeon processors.

CyberStore JBOD Storage:

Ultra fast direct attached storage servers for when performance is key, these enterprise-grade JBOD appliances are built to handle whatever you can throw at them.

  • Ultra-Performance Enterprise Storage
  • 12GB 3.5" SAS, SATA Drives
  • High performance 12Gb/s data transfer rates
  • Directly Expand any Server with a SAS Port

Broadberry Direct-Attached Storage appliances, also known as JBOD's (Just A Bunch Of Disks) easily and cost-effectively expand the storage of any server with an external SAS port.

Once connected, Broadberry DAS storage appliances are seen as though the additional storage provided is internal to the server or workstation, this basic, direct connectivity between the server and the DAS unit ensures easy set-up and fantastic performance.

This means Microsoft Windows or any other compatible operating system will see the device as an internal device, which can then be partitioned and formatted just like any other internal hard drive or raid array.

The Broadberry CyberStore DAS is connected directly using the latest SAS (Serial Attached SCSI) technology, so the device is as fast, and in most cases even faster, than the drives that are already inside the Server or workstation.

Broadberry provide a wide range of Direct Attached Storage servers (DAS), scaling from entry level 1U units with 4 hot-swappable hard drives to our 4U appliance with room for 60 drives. Our DAS servers include redundant power supplies and have a choice of hardware RAID levels including RAID level 0, 1, 5, 6, 10, 50 and JBOD.

The CyberStore DAS range is designed to excel in both high I/O transaction and high bandwidth processing allowing steaming video or data backup applications to run faster than ever.

Offering mission critical, fault tolerant designs that include RAID levels 0, 1, 5, 6, 10, 50 and JBOD, hot-swappable drive bays, redundant power supplies & fans. It also features user friendly software for quick set-up and monitoring, maximizing data protection to keep your application running 24/7. The CyberStore DAS is an ideal direct attached external disk array subsystem that provides superior performance for any and all applications with the lowest Total Cost of Ownership (TCO) in its class.


Built on enterprise-grade, industry-standard hardware, the Broadberry CyberStore range boats extensive support and compatibility with almost all servers.

Compatible Server Manufacturers:

Whatever the manufacturer of your current server, the Broadberry DAS range boasts full compatibility.
  • Broadberry Servers
  • Dell
  • HP
  • IBM
  • SUN Micro
  • many more...

Compatible Operating Systems:

The Broadberry CyberStore DAS range boats full compatibility with a large range of operating systems
  • Microsoft® Windows® Server 2012/8
  • Microsoft® Windows® Vista/2003/2008/7/8/10
  • Linux®
  • Solaris (x86)
  • FreeBSD®
  • VMware®

Requirement:

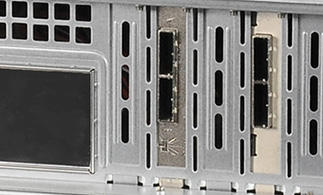

All Broadberry CyberStore-DAS appliances need from your current server is an external SAS port.
  • If your server doesn't have one we can bundle this in from approximately just £180.

Powered by Avago Technologies MegaRAID 9380-8e controller card, the Broadberry CyberStore DAS range is ideal for Hyperscale, datacenter, and high-performance computing environments requiring large amounts of storage capacity with ultra-fast performance.

Offering up to double the data transfer rate of 6Gb/s SAS solutions, Broadberry 12Gb/s direct-attached storage allows the SAS infrastructure to deliver bandwidth that can fully utilize that of PCI Express® 3.0.

The MegaRAID SAS 9380-8e delivers two 1.2GHz PowerPC® processor cores and a 72-bit DDR3 interface that drives 1GB cache memory. Powered by the LSI SAS 3108 dual-core ROC, the 9380-8e controller includes the latest PCI Express 3.0 and 12Gb/s SAS technology and is designed for configuring external storage enclosures with high-performance SAS hard drives, high-capacity SATA hard drives or application-accelerating solid state drives (SSDs).

Built-In Enterprise Data Protection

A new enterprise feature employed by the Broadberry CyberStore-DAS's 12Gb/ SAS controllers is advanced drive diagnostic technology.

In the event of a physical drive failure, the drive is placed in shield state and the MegaRAID controller starts drive diagnostics to determine if the drive is indeed failed or can be restored. This saves you time, money and lost compute time associated with transient drive failures.


Broadberry CyberStore-DAS Controller Card:


Daisychain multiple JBOD units to create one large storage pool, providing terabytes of 12Gb/s SAS/SATA storage at a fantatic price.

The Cyberstor DAS Storage Systems can be daisy chained together to create one or many central storage pools. All attached storage units can be managed as if they were one large unit with up to 128 drives per SAS port.

And you don’t have to stop at 128 drives, as you have an option for dual port PCI-Express or PCI-X SAS Controllers, and you can also have as many controllers as your server or workstation can support, so having 512 Drives attached and managed by one server or workstation is no longer an impossible mission.



3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberStore storage appliances are backed up by our 3 year warranty, with further warranty upgrade options available.

Daisy Chain CyberStore Appliances

Increase the storage capacity of your storage pool appliance by daisy-chaining additional CyberStore JBOD units, giving up to Petabytes of storage.

12Gb/s SAS3 Storage

Built from the ground up around 12Gb/s SAS storage technology, the CyberStore Performance range raises performance and lowers TCO.

With IPMI Remote Management

Broadberry DAS appliances have built-in iPMI functionality, enabling complete control and management of your server through IP.

Built with Leading Brand Components

All components in the Broadberry CyberStore DAS range are sourced from leading manufacturers who take reliability as seriously as we do.



Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:
