Surveillance Storage

The CyberStore-VS range is specifically designed and optimised for Enterprise Video Surveillance, running 24/7 365, Precision-tuned for high write surveillance workloads.

The CyberStore VS range of video server and storage appliances are optimized specifically for video surveillance. The CyberStore VS is based on the industry standard open platform, so you are not tied in to expensive proprietary solutions. There are no capacity license fees and no client access license fees. Our Solutions are the most cost effective enterprise storage solutions on the market.

These high-performance All-in-One Video Server and Storage Appliances are reliable, affordable and easy to install. Built from industry compatible components, they'll also work with your existing infrastructure and surveillance software.


Compatible With All Leading Operating Systems

Short Depth

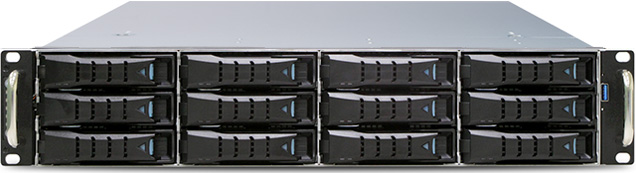

CyberStore VS-212iP

IP Surveillance Server, Short Depth 2U Rackmount VMS, DVR, NVR, Storage Appliance, 12 Drive Bays, over 170TB Storage

Form Factor:
2U
Drive Size:
3.5" Storage Servers
Drive Bays:
12 Drive Bays
Storage Capacity:
192TB
Configure From: $3,203
Configure
Short Depth

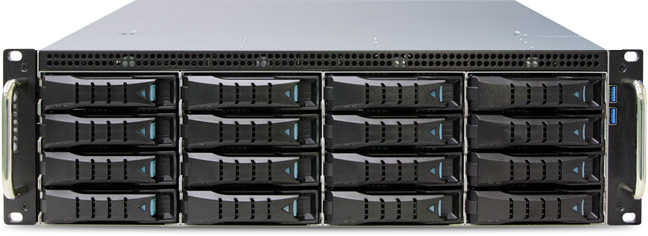

CyberStore VS-316iP

IP Surveillance Server, 3U Short Depth Rackmount VMS, DVR, NVR, Storage Appliance, 16 Drive Bays, over 225TB Storage

Form Factor:
3U
Drive Size:
3.5" Storage Servers
Drive Bays:
16 Drive Bays
Storage Capacity:
256TB
Configure From: $3,869
Configure
Short Depth

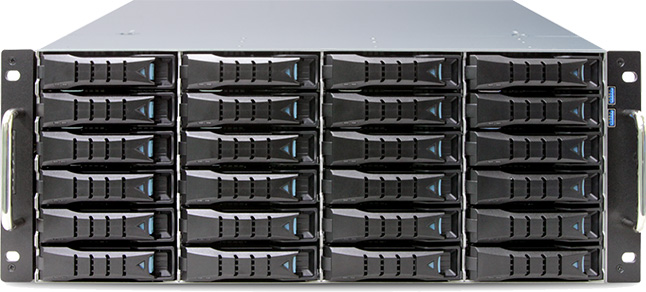

CyberStore VS-424iP

IP Surveillance Server, 4U Short Depth Rackmount VMS, DVR, NVR, Storage Appliance, 24 Drive Bays, over 330TB Storage

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
24 Drive Bays
Storage Capacity:
384TB
Configure From: $4,423
Configure
CyberStore VS-436iP

IP Surveillance Server, 4U Rackmount VMS, DVR, NVR, Storage Appliance, 36 Drive Bays, over 210TB Storage

Form Factor:
4U
Drive Size:
3.5" Storage Servers
Drive Bays:
36 Drive Bays
Storage Capacity:
576TB
Configure From: $5,975
Configure


Compatible with all major operating systems, the CyberStore range of open storage servers can be pre-configured with these storage operating systems.

Configure your CyberStore storage appliance with a wide range of open-source operating systems for an enterprise-grade, cost-effective storage solution.



The Broadberry CyberStore range of unified storage servers support all major file systems for maximum compatibility.

NTFS
REFS
XFS
EXT2/3/4
ZFS
CEPH

LUSTRE
GLUSTER
BEEGFS
GPFS
MOOSEFS
HDFS


The Broadberry CyberStore range of unified storage servers are completely compatible with leading database engines.


Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918




CCTV is an ever increasing market for storage, this is due to 2 main reasons, more and more installations are being implemented, the other is that the existing CCTV solutions are upgrading to High Definition.

This combination results in an ever increasing market for CCTV storage solutions. Other factors include how busy an area is likely to be, because most of the cameras have motion detectors so the more movement the more recording and the more storage space required.

Broadberry can build and supply CCTV storage systems known as an NVR (Network Video Recorder) or DVR (Digital Video Recorder).

DVR - Digital Video Recorders

DVRs digitally compresses analogue video streams to a hard drive, on Digital Video Recorders, Digital means the technology used to compress the data is digitized and not the images being digital.

In general DVRs tends to be used for small installations generally for analogue systems in small retail outlets/ small businesses etc which require a few cameras and the storage capacity requirements is low say up to 2 TB.Digital Video Recorders generally don't have more than 2 hard drives and are mirrored through software raid and video inputs directly connect to the DVR itself

NVR - Network Video Recorder

NVRs store data streams that have already been encoded or digitized at the camera and stores the digital images via an IP network. This means that an NVR can be located on anywhere on an IP Network.

The cameras connect to the NVR via standard ethernet or in some of the larger installations 10Gbe. NVRs also tend to be used in the larger installations is generally known to have more networking features and has a larger storage capacity and has more redundancy built in such as raid and redundant power supplies etc, Network Video Recorders tend to be use in larger CCTV sites.


That's why we design and build our IP Surveillance Storage range, proven in deployments around the world in thousands of customer installations integrated with Broadberry Viewing Stations.

Select an affordable storage system with capacity for a few days of typical recording, or scale to over 1 Petabyte in a single system for months of recording capacity.

Broadberry IP Storage systems are RAID protected to reduce the risk of lost video data, and features hot-swap disk drives and power supplies for continuous operation and easy maintenance.

Broadberry IP Surveillance products are all about three words... Flexible, Powerful, and Reliable. It's built for one specific thing: to be the best possible, most reliable storage platforms for video surveillance, video analytics, access control, and other physical security applications.

Why choose a Broadberry NVR solution?

  • Fast to deploy and ready-to-use in just a few minutes
  • User-friendly, plug-and-play solution
  • Open Platform design so you are not tied into any vendor
  • Perfect match between reliable, industry-leading software and industrial grade hardware
  • Remote Monitoring and remote access built in to all models as standard
  • Scalable Storage designed to suit a range of user need from 8 Terabytes to 1 Petabyte or more
  • Three year hardware warranty upgradable to various On-Site Warranty options to suit your needs.

Casino / Gambling CCTV Storage

Casino and Gambling Houses require high capacity NVRs / CCTV storage systems, this is due to the fact that Casinos are required to record at higher speed (25-60 ) frames per second instead of the standard 3-5 frames per second that standard CCTV applications such as shops and street CCTV require.

The CyberStore 436DSS and 445 JBOD solution give Casinos a storage solution that offers very dense low cost resilient storage. The CyberStore 436 has a raw capacity of up to 72TB native and 64.8 TB usable (raid 6) in a 4U rack space, available with standard ethernet ( this can be bonded), 10Gbe ethernet or fibre channel connectivity.

To increase the storage capacity the CyberStore JBOD 445 with a capacity of 90 TB native in a 4U Rack Chassis be attached very easily via the SAS external port on the raid controller.

The CyberStore 436 DSS offers lot of functionality including

Operating system

Open-E ISCSI SAN & NAS Storage Software comes pre-installed, and is optimized for maximum storage performance and light-touch management.

Redundancy

Support for all raid levels including 0,1,5,6,10 & 50 and hot spares. Redundant Hot Swap Power Supply (2U and Above only).

iSCSI Failover / Clustering

iSCSI Failover built in as standard with no additional licence costs. Two or more Cyberstore Appliances can be configured as master and slave so they will be seen as one unit. If any one of the units fails, it will automatically fail-over with no disruption to the users.

Management

Broadberry CyberStore Storage Servers can be managed remotely on a standard web browser and integrated Lights-Out technology with optional IPMI 2 management can monitor and control all features.

Universal connectivity

Integrated protocols support access from Windows, NetWare, Linux, UNIX and Apple clients, plus HTTP and FTP no software licences required.

Shadow copy snapshots

By creating scheduled snapshots of shared data, accidentally deleted or overwritten files can be automatically restored no need to restore from tape.

Data replication

Replicate data between ISCSI SAN & NAS devices over a standard Ethernet network using built in Mirroring software. Data is synchronized based only on the changes made, minimising network traffic. Data Replication can be over a LAN (Local Area Network) or WAN (Wide Area Network). Synchronous or Asynchronous

WORM

This option is available for NAS volumes only; WORM-enabled volumes can be read multiple times, but written to only once. Enabling WORM for a NAS volume is only possible after selecting new NAS volume from the drop-down menu. Once WORM is enabled it cannot be undone; It is not possible to remove WORM from an existing volume

Combined with the redundant PSUs ,the raid options and the scalability of the the CyberStore range this is a ideal for the Casino / Gambling CCTV market.

The CyberStore VS range of video server and storage appliances are optimized specifically for video surveillance, access control and video analytics applications. These high-performance All-in-One Video Server and Storage Appliances are reliable, affordable and easy to install.

The video surveillance industry is fast changing as the industry is adapting to IP based digital systems and we are continuously evaluating new technologies to provide server and storage systems that are optimized for video surveillance, access control, video analytics or other demanding security applications.

We have extensive experience in video surveillance servers and storage and have designed and provided solutions for many small, medium and large projects, furthermore our solutions are designed based on industry standard and open architecture technology providing ultimate performance, design flexibility, reliability and future expansion.

Performance

System performance was a key factor when designing the CyberStore VS range of server and storage appliances, we achieve this is by using only the best of breed system components including:- Server Optimized multi-core Intel Xeon CPUs, Solid State System and Application Drives, fast 6Gb/s RAID controllers and SAS 6Gb/s enterprise class video storage drives.

Reliability

We understand the importance of proven reliability and maximum system uptime, so we have included many fault tolerant and system management features as standard into the CyberStore VS range of servers and storage appliances including:- Mirrored Solid State System and Application Drives, Dual Redundant Power Supplies, Hot-Swap Hard Drives with a choice of RAID levels, Hot-Swap System Fans, IPMI Remote System Management and complete RAID System Monitoring with failed component E-mail notification.

Expansion

An important factor when designing the CyberStore VS range of servers and storage appliances was expansion, with integrated features such as on-line volume capacity expansion, RAID level migration and the ability to add optional Attached Video Storage Expanders, allowing You to increase your storage capacity as and when you require.

Flexibility

We have a complete range of processor, memory and storage capacity options available, with standalone models ranging from 4TB to 136TB all with the ability to add optional Attached Video Storage Expanders allowing you to grow your video storage systems to hundreds of terabytes and beyond.

Ready to Use

All CyberStore VS models are supplied with Microsoft Windows Server 2008 or you can choose to go with Windows Server 2012 as a no cost option, but whichever you choose the unit is pre-installed and configured ready for use, we also setup and configure the RAID controller and drives for a real out of the box experience. All you need to do is install your chosen Windows based VMS, access control and/or video analytics software and you are up and running.


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:
