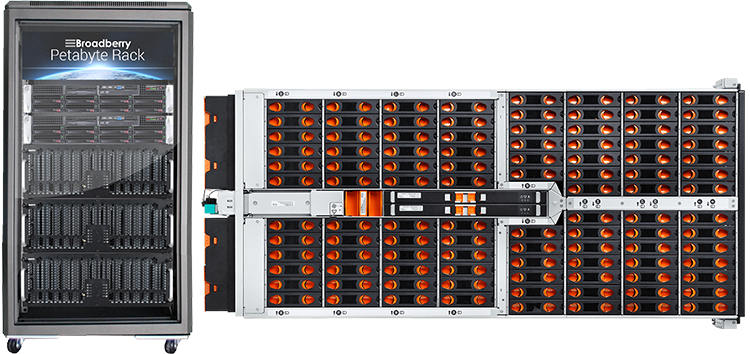

Broadberry™Petabyte Rack

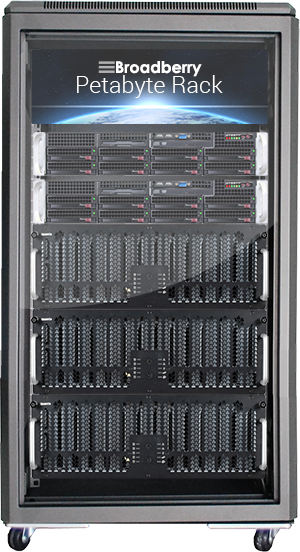

Introducing the Petabyte Rack, 3.6 PetaBytes of RAW Storage in a Half Rack under a single name space or volume.

...with Virtually Unlimited Expandability

Speak To Us

Windows Storage Server

Configure From $116,292

Configure

Configure your Petabyte Rack with Windows Storage Server 2019 and benefit from its familiar interface and wide range of storage features.

Open-E JovianDSS

Configure From $188,760

Configure

Configure your Petabyte Rack with Open-E JovianDSS and benefit from its fantastic value for money and wide range of storage features.

Nexenta NexentaStor

Configure From $254,364

Configure

Configure your Petabyte Rack with Nexenta's Enterprise storage OS and benefit from its familiar interface and wide range of storage features.

Hardware Only

Configure From $115,500

Configure

Just need Petabytes of RAW storage? We can also supply the Petabyte Rack with no operating system installed if you would prefer.

Features:

  • Familiar Windows Interface
  • Data Deduplication
  • Thin Provisioning
  • Cloud-Delivery Server
  • Software Storage Teiring

Features:

  • Active-Active Failover
  • Volume Replication
  • Snapshots
  • Continuous Data Protection
  • Storage Virtualisation

Features:

  • 128 Bit ZFS-based File System
  • Open Storage
  • Unified Storage
  • High-Availability
  • Storage Virtualisation

Features:

  • PetaRack Hardware Only
  • Use Your Own O/S
  • Total Flexibility
  • Reduced Cost
  • Total Compatibility

Enterprise-Class Storage In a Rack

Every aspect of the Broadberry Petabyte Rack has been carefully crafted to ensure easy maintenance, maximum performance, and the enterprise-class reliability Broadberry storage solutions have become renowned for.

Maintenance

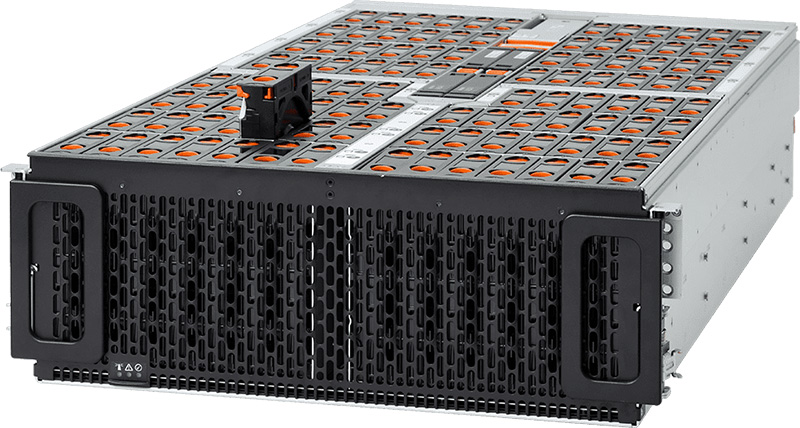

Mounted on high quality ball bearing slider rails, the Broadberry™ CyberStore QM4600H JBODs can be easily accessed for maintenance, as can its 60 hot-swappable enterprise class hard drives.

Performance

Configurable with Enterprise-class SAS hard drives, Fibre-channel connectivity, SSD Caching/Teiring and Dual head nodes, the Petabyte Rack provides the ultra-high perfromance your organisation needs.

Reliability

Dual 1,400W (80plus platinum) Redundant Power Supplies, ZFS based operating systems and the highest quality components mean you can rely on the Petabyte Rack for mission critical applications.

Broadberry Petabyte Rack® Enterprise-Class Storage

The Broadberry Petabyte Rack is an enterprise level mass storage solution based on our multi-award winning CyberStore range of storage servers.

Used by some of the worlds biggest brands and institutions for over 34 years, the CyberStore range is a well-trusted platform to power the Petabyte Rack, daisy-chained through ultra fast SAS connectivity.

Petarack Features:

Configurable with up to 3.3PB in a half-height rack or 12PB in a full-height rack, the Broadberry Petabyte Rack delivers Enterprise-Class storage functionality at a significantly lower cost than alternative solutions.

  • High Availability
  • 3.4PB in a Single Volume
  • Caching, Replication, Thin Provisioning & Dedup
  • VMware, Citrix and Hyper-V Ready

Compare Operating Systems

JovianDSS Windows Storage Server 2016 Nexenta NexentaStor
Filesystem
ZFS NTFS ZFS
Characteristics
Maximum storage Unlimited Unlimited Unlimited
Maximum volume size Unlimited 256TB Unlimited
Operating System Architecture 64-bit 64-bit 64-bit
File System Architecture 128-bit 64-bit 128-bit
High availability
Active-Active iSCSI
Active-Active Fibre Channel
Active-Passive iSCSI shared storage cluster
Protocols
iSCSI
NAS (SMB/CIFS, FTP, Secure FTP, HTTP, NFS v2, v3) (Single Mode)
Fibre Channel (Single Mode)
IP over Infiniband
Features
Caching Native, tiered RAM and SSD Native, tiered RAM and SSD Native, tiered RAM and SSD
Thin Provisioning
Deduplication
Compression
Replication
Snapshots Unlimited 512 per volume Unlimited
Certifications
VMware Ready
Citrix Ready
Hyper-V Ready
Twice the Density of other PB Solutions
Less than Half the Cost of other PB Solutions
The Same Advanced Enterprise Storage Features

Configure your Petabyte Rack to suit your business requirements

The Broadberry Petabyte Rack can be optimised for a wide variety of enterprise-grade storage requirements, from cold storage / archiving to high performance hot storage.

Config Option Performance Reliability Storage/Pound
Set-Up

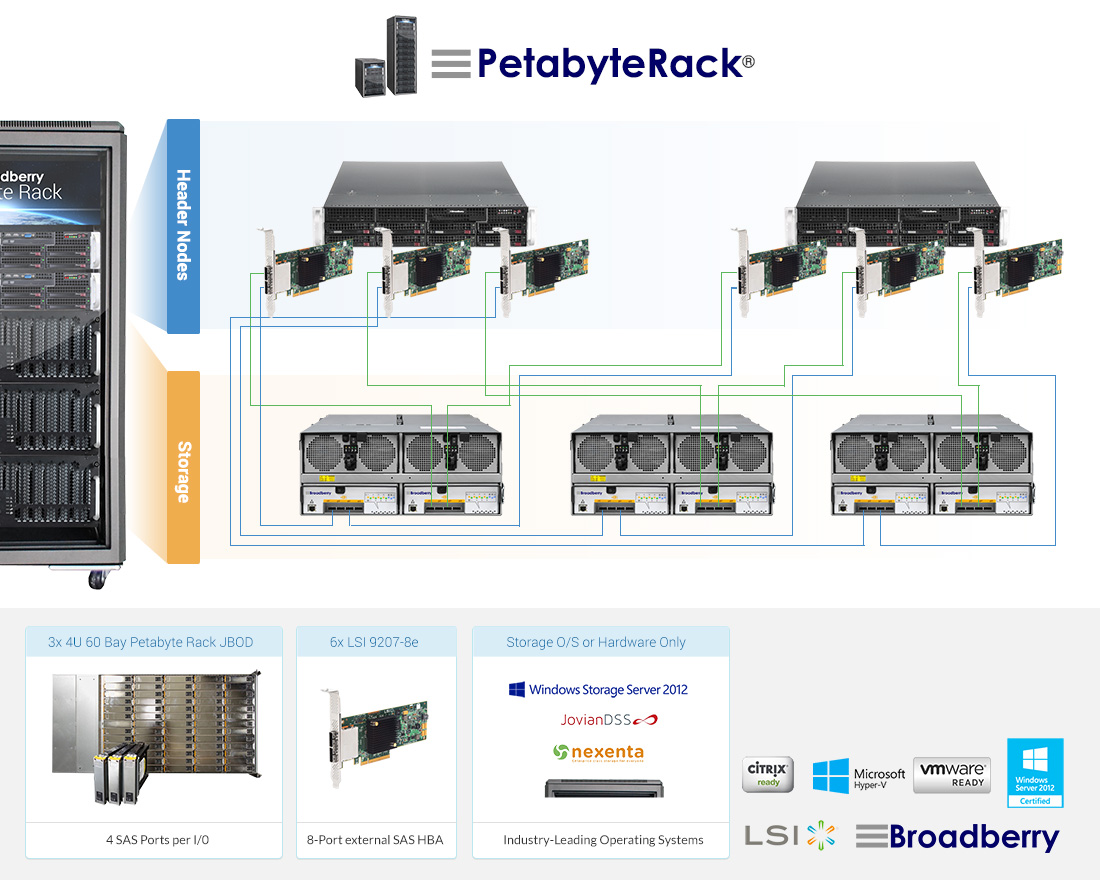

1 Header Node
2
2
3
2 Header Nodes
3
3
2
Storage
SATA Drives
2
3
3
SAS Drives
3
3
2
Connectivity
10GbE
1
N/A
3
40GbE
2
N/A
2
Fibre Channel
3
N/A
1

Example Configurations

Cold Storage / Archiving
Config. 1
  • Single Header node
  • SATA Low Power Cold Storage Drives
  • Open-E JovianDSS
  • 10GbE Connectivity
  • Maximum Capacity / Price per TB
Hot Storage
Config. 2
  • Dual Header nodes
  • SAS2 Hard Drives with SSD Caching
  • NexentaStor
  • Fibre Channel Connectivity
  • Maximum Performance

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

Petabyte Rack® Features The Broadberry Petabyte Rack explained:

3 Years Warranty as Standard

Buy with confidence knowing the Broadberry Petabyte Rack is backed up by our 3 year warranty, with further warranty upgrade options available.

Up to Quad Xeon Processors

Configure your Petabyte Rack header nodes with 2 or 4 Intel Xeon SP processors per node, depending on your application.

Daisy Chain CyberStore Appliances

Increase the storage capacity of your Petabyte Rack by daisy-chaining additional CyberStore JBOD units, for virtually unlimited storage

With IPMI Remote Management

The Broadberry Petabyte Rack boasts built-in iPMI functionality, enabling complete control and management of your server through IP.

Built with Leading Brand Components

All components in the Broadberry Petabyte are sourced from leading manufacturers who take reliability as seriously as we do.

Built in Thin Provisioning

Expand your storage pools online as and when you need to with the Petabyte Racks built in Thin Provisioning feature.

Hardware SSD Caching

The Petabyte Rack includes a hardware-based SSD Caching option, allowing you to cache your most used data on super fast SSD's via a RAID controller.

High Availability over 2 nodes

The Petabyte Rack will recognise hardware/software failure and immediately restart the application on another system without requiring intervention or downtime.

Windows Storage Server 2016 powered Broadberry Petabyte Rack

Windows Familiar Interface

Built on Windows Storage Server 2016 R2, the CyberStore WSS range uses the same familiar Windows interface you're used to.

Built in Data Deduplication

Reduce storage footprint by up to 70% with the CyberStore WSS' deduplication feature , removing duplicates in sets of data and referencing to a single file instead.

Deduplication on Running VMs

The CyberStore WSS range can deduplicate virtual machines, greatly increasing the overall effectiveness of deduplication for VDI implementation.

Workplace Join

Workplace Join allows certificate-based authentication and single sign-on to applications and data for personal devices like iPads.

Hardware SSD Caching

The CyberStore WSS range includes a hardware-based SSD Caching option, allowing you to cache your most used data on super fast SSD's via a RAID controller.

Software Storage Teiring

Dynamically move chunks of your most used data between HDDs and super fast SSDs through Windows Storage Server for an alternative to hardware based SSD caching.

Built in File Replication Service

Windows Storage Server Work Folders works very similar to Dropbox. Install this role on your CyberStore WSS and get a fully functional secure file replication service.

Parallel Rebuild Failed Storage

If you've ever had a disk fail in a RAID array you'll know the rebuild time can take ages, espeically with large disks. WSS 2016 greatly reduces this to less than 1 hour for a 3TB disk.

Open-E JovianDSS powered Broadberry Petabyte Rack

Supports Popular Backup Software

Unlike a lot of storage operating systems, Open-E includes backup-agents to support the worlds most popular backup applications like BackupExec®, Retrospect®, BrightStor®

Stable Linux Operating System

Open-E runs on a Linux Platform because of its proven stability, unlike others which are less stable or which have limited and diminishing support for new hardware

Easy-to-Use Interface

The CyberStore DSS range has an easy to use interface and boasts an inital configuration wizard to get you set up straight away.

Nexenta NexentaStore powered Broadberry Petabyte Rack

Easy to Use Interface

Built on Windows Storage Server 2016, the CyberStore WSS range uses the same familiar Windows interface you're used to.

Built in Data Deduplication

Reduce storage footprint by up to 70% with the CyberStore WSS' deduplication feature, removing duplicates in sets of data and referencing to a single file instead.

Open-Stack Plugin

Reduce storage footprint by up to 70% with the CyberStore WSS' deduplication feature, removing duplicates in sets of data and referencing to a single file instead.

ZFS Based

Create an unlimited number of customised, automated or periodic snapshots to ensure granular recovery of your business-critical data

Unlimited Snapshots

Create an unlimited number of customised, automated or periodic snapshots to ensure granular recovery of your business-critical data

Software Storage Tiering

Dynamically move chunks of your most used data between HDDs and super fast SSDs through Windows Storage Server for an alternative to hardware based SSD caching.

Load Balancing on H/A nodes

Create an unlimited number of customised, automated or periodic snapshots to ensure granular recovery of your business-critical data

Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.

Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:

ISO 9001 Certified
