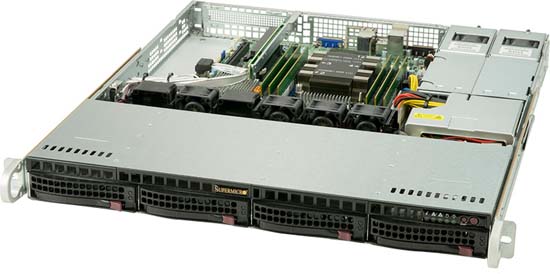

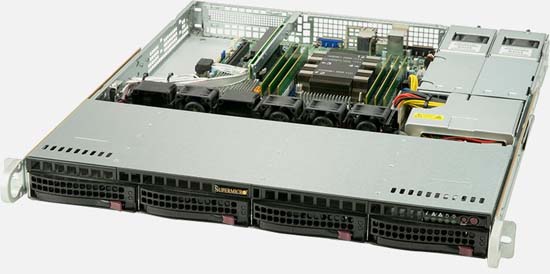

Supermicro SuperServer 5019P-M SYS-5019P-M

Optimised for Web Hosting, Database Applications and Data Serving. 2x 1GbE with Marvell 88E1512, Integrated IPMI 2.0 and KVM with Dedicated LAN.

  • Web Hosting, VM
  • Compact Network Appliance
  • Single socket P (LGA 3647) supports Intel Xeon Scalable Processors
  • Intel C621 chipset

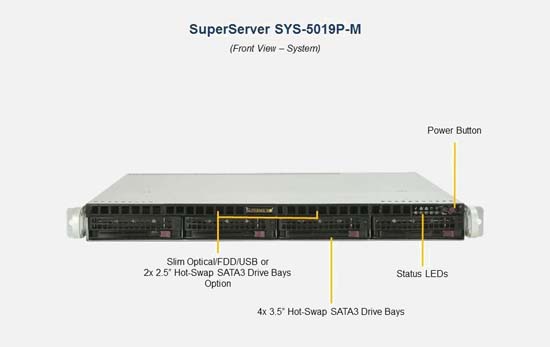

  • 4 Hot-swap 3.5" SATA3 bays w/ RAID
  • Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots
  • 1 PCI-E 3.0 x16 slot (FH, HL)
  • 2x 1GbE with Marvell 88E1512
  • Integrated IPMI 2.0 and KVM with Dedicated LAN

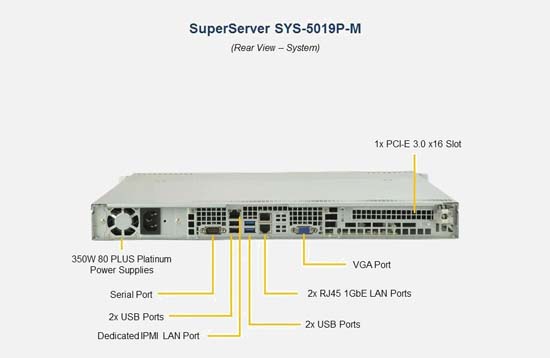

  • 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0
  • 350W High-efficiency Power Supply Platinum Level Certified



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 768GB of RAM

Equipable with up to 768GB of RAM, allowing for fast and effective multi-tasking for high level applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 5019P-M | SYS-5019P-M features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 5019P-M | SYS-5019P-M with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


A 1U Supermicro SuperServer based on 1x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 5019P-M | SYS-5019P-M is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 6x 3200Mhz DDR4 memory sockets .

The Supermicro SuperServer 5019P-M | SYS-5019P-M supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 5019P-M | SYS-5019P-M boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 5019P-M | SYS-5019P-M Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 768GB
