Supermicro Ultra SuperServer SYS-220U-TNR SYS-220U-TNR

Optimised for Virtualisation, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage. Two PCIe 4.0 x16 expansion slots. Flexible networking options.

  • Key Applications - Virtualisation, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset

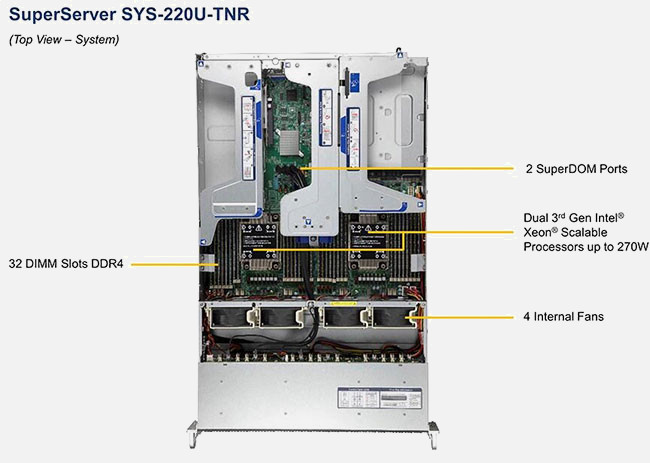

  • 32 DIMM Slots;
  • Up to 8TB DRAM;
  • Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
  • 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  • Intel® Optane™ Persistent Memory 200 series

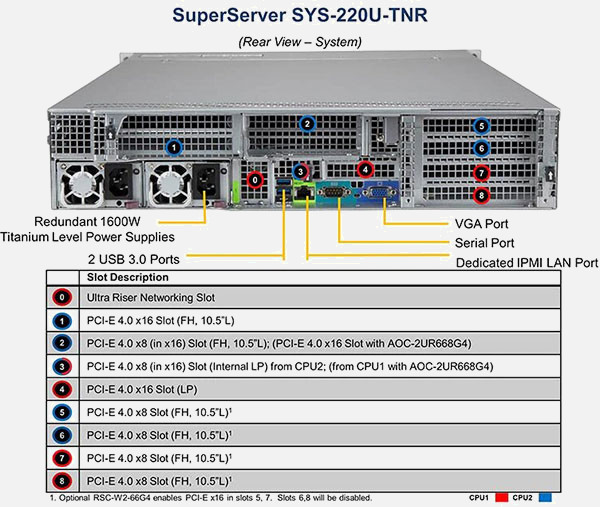

  • 1 internal PCI-E 4.0 x8 (in x16 slot, LP)
  • 1 PCI-E 4.0 x16 (FH, 10.5"L)
  • 1 PCI-E 4.0 x16 (LP)
  • 5 PCI-E 4.0 x8 (FH, 10.5"L)
  • Flexible networking options

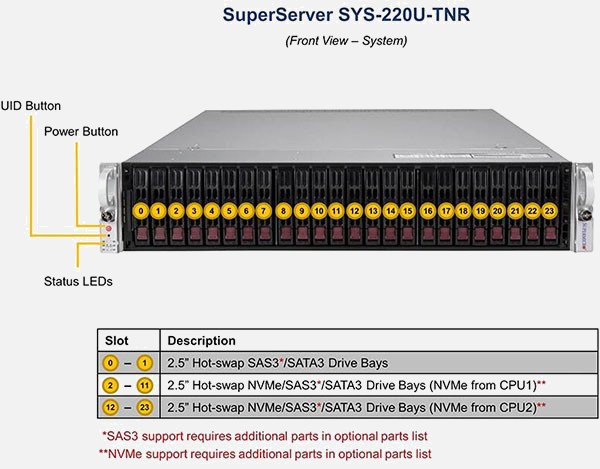

  • 22x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays + 2x2.5" hot-swap SATA/SAS drive bays
  • 4 heavy duty fans with optimal fan speed control
  • 1600W redundant Titanium level power supplies



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Optimised For Virtualisation

Designed to excel at virtualisation. You can use virtual machines for testing, to save physical space, to reduce costs, for hardware for increased compatibility and more.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro Ultra SuperServer SYS-220U-TNR | SYS-220U-TNR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro Ultra SuperServer SYS-220U-TNR | SYS-220U-TNR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.


A 2U Supermicro SuperServer based on 2x Intel 3rd Gen Intel Xeon Scalable Processors range of processors, the Supermicro Ultra SuperServer SYS-220U-TNR | SYS-220U-TNR is configurable with up to 24x Hot-Swap Drives drive bays, and designed for optimal performance with 32x 3200Mhz DDR4 memory sockets .

The Supermicro Ultra SuperServer SYS-220U-TNR | SYS-220U-TNR supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro Ultra SuperServer SYS-220U-TNR | SYS-220U-TNR boasts 8 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro Ultra SuperServer SYS-220U-TNR | SYS-220U-TNR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processors
  • Range: Virtualisation Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 4.1TB
