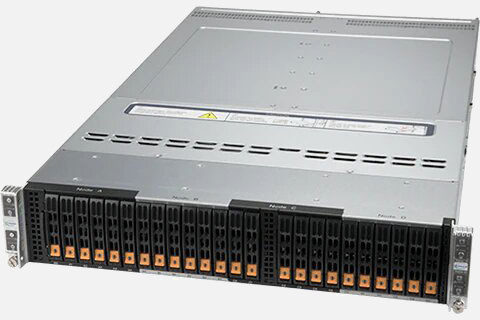

Supermicro BigTwin SuperServer SYS-220BT-HNC9R SYS-220BT-HNC9R

Optimised for mission critical HPC, virtualised Big Data analytics. Four hot-pluggable systems (nodes) in a 2U form factor. Redundant power supply.

  • Key Applications - Mission Critical HPC, Virtualised Big Data Analytics, High-Density Storage RAID Array

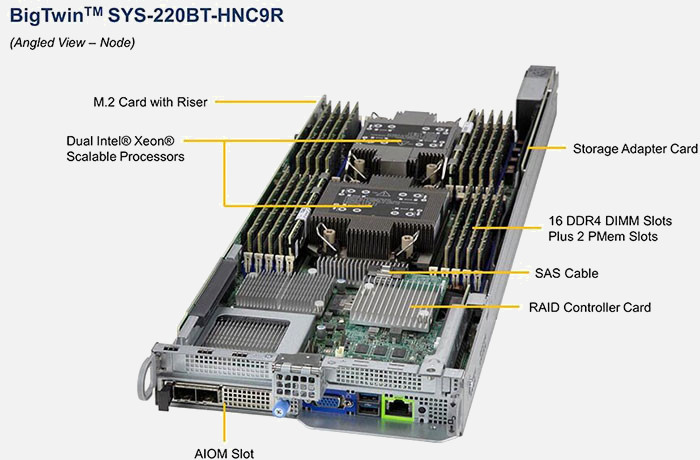

  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A
  • 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
  • 1 PCI-E 4.0 x16 (LP) slot;
  • Tool-less support
  • Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA support onboard
  • Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  • Network connectivity via AIOM (OCP 3.0 compliant)

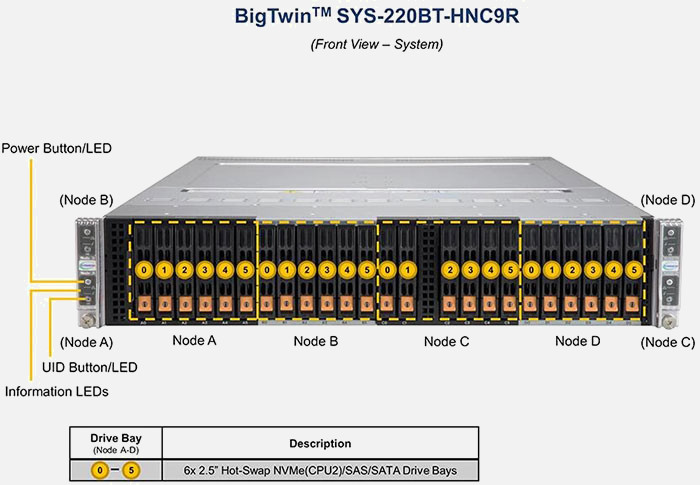

  • 6 Hot-swap 2.5" drive bays; 6 PCI-E 4.0 NVMe/SAS/SATA 2.5" drives
  • 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
  • Liquid Cooling Support

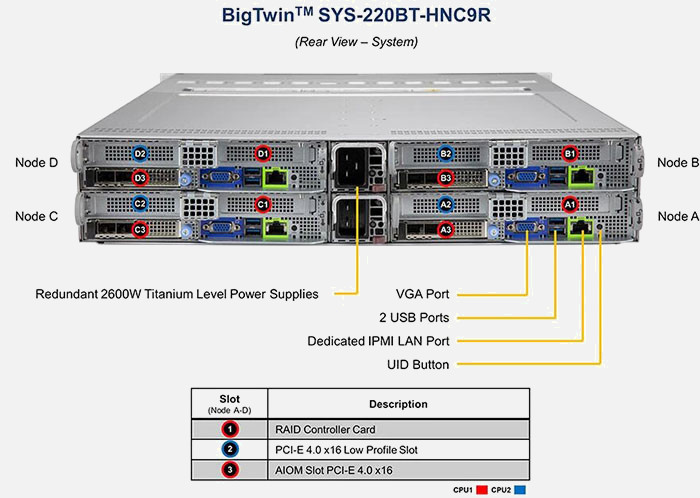

  • 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • Buil



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro BigTwin SuperServer SYS-220BT-HNC9R | SYS-220BT-HNC9R features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro BigTwin SuperServer SYS-220BT-HNC9R | SYS-220BT-HNC9R can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.


A 2U Supermicro SuperServer based on 8x Intel 3rd Gen Intel Xeon Scalable Processors range of processors, the Supermicro BigTwin SuperServer SYS-220BT-HNC9R | SYS-220BT-HNC9R is configurable with up to 24x Hot-Swap Drives drive bays, and designed for optimal performance with 64x 3200Mhz DDR4 memory sockets .

The Supermicro BigTwin SuperServer SYS-220BT-HNC9R | SYS-220BT-HNC9R supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro BigTwin SuperServer SYS-220BT-HNC9R | SYS-220BT-HNC9R boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro BigTwin SuperServer SYS-220BT-HNC9R | SYS-220BT-HNC9R Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processors
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 8.2TB
