Supermicro CloudDC SuperServer SYS-120C-TR SYS-120C-TR

Optimised for web server, cloud computing and data centre use. 3rd Gen Intel Xeon Scalable processors. Redundant power supply.

  • Key Applications - Web Server, Firewall Application, Data Center Optimised, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes
  • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset

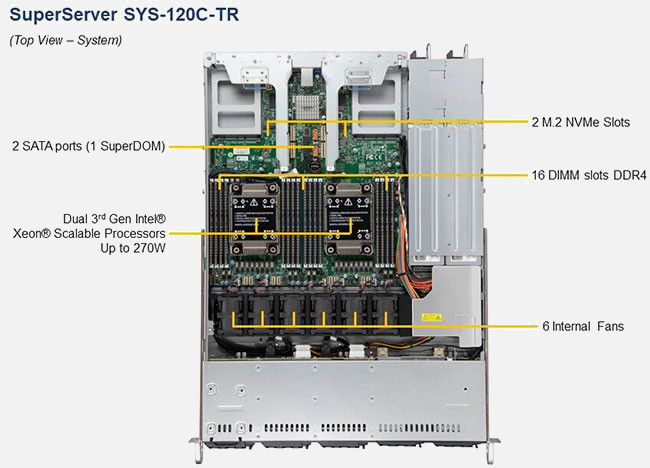

  • 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
  • 2 PCI-E 4.0 x16 FHHL;
  • 2 PCI-E 4.0 x16 AIOM (OCP 3.0);
  • 2 PCI-E 3.0 x2 NVMe M.2
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

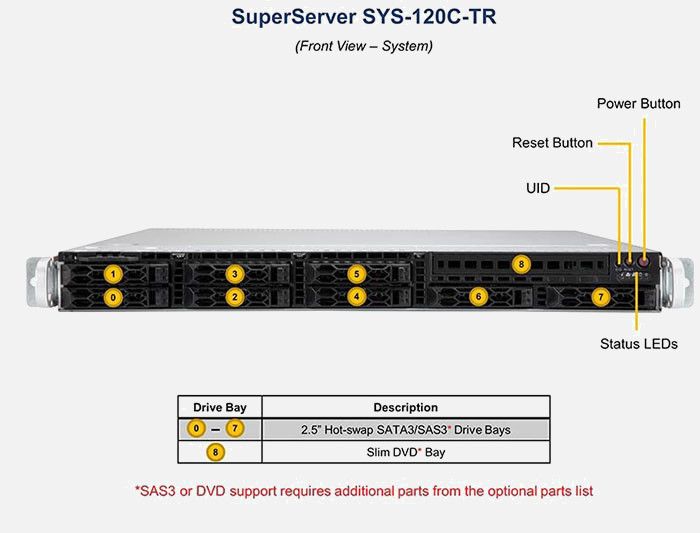

  • 8x 2.5" hot-swap SATA/SAS drive bays
  • 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies

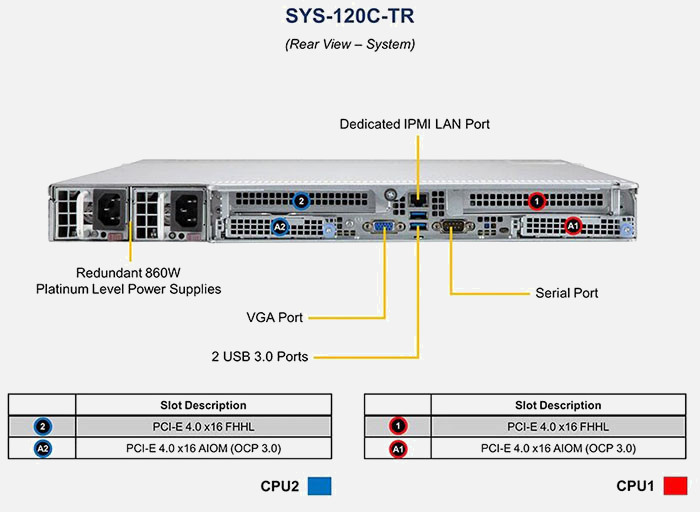

  • 1 VGA, 1 COM, 2 USB 3.0 (rear)



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For Cloud Computing

Optimised for cloud computing. Cloud computing provides a variety of advantages including better security, better TCO, 24 hour access and easy implementation.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro CloudDC SuperServer SYS-120C-TR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro CloudDC SuperServer SYS-120C-TR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

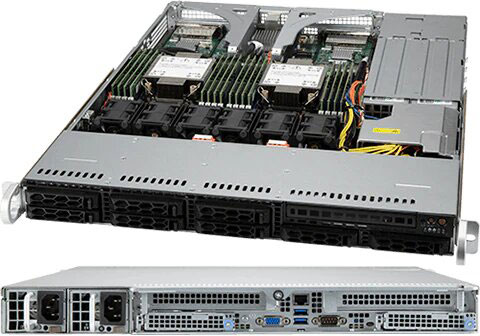

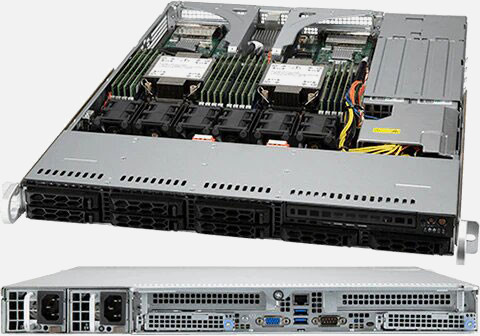

A 1U Supermicro SuperServer based on 2x Intel 3rd Gen Intel Xeon Scalable Processors range of processors, the Supermicro CloudDC SuperServer SYS-120C-TR is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 3200Mhz DDR4 memory sockets .

The Supermicro CloudDC SuperServer SYS-120C-TR supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro CloudDC SuperServer SYS-120C-TR boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro CloudDC SuperServer SYS-120C-TR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processors
  • Range: Cloud Computing Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 2TB
