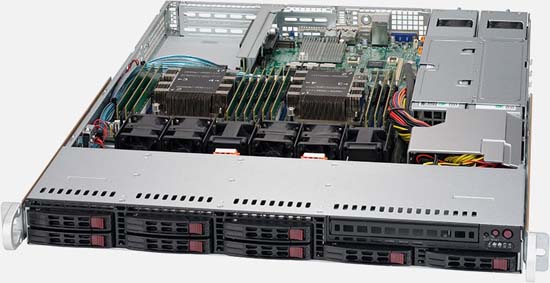

Supermicro SuperServer 1029P-WTR SYS-1029P-WTR

Optimised for Web Server, Compact Network Appliance and Cloud Computing. Redundant Power Option, 2x PCI-E 3.0 x16 (FHHL) slots, 1x PCI-E 3.0 x8 (LP) slot, 1x PCI-E M.2 SSD slot

  • Web Server, Firewall Apps.
  • Corporate-Wins, DNS, Print, Login
  • Gateway, provisioning servers
  • Compact Network Appliance
  • Cloud Computing

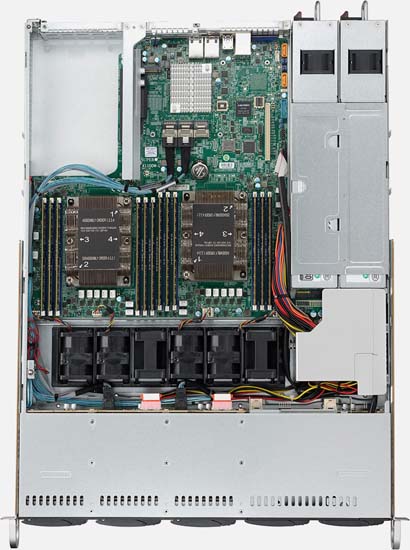

  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
  • 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module, 1 PCI-E M.2 SSD slot

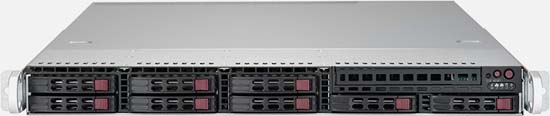

  • 8 Hot-swap 2.5" SAS/SATA drive bays
  • Optional 1 slim DVD-ROM drive bay
  • 2 1GbE LAN ports via Intel X722

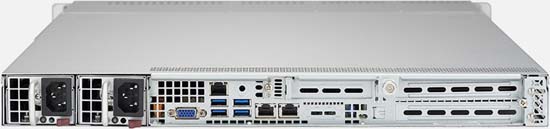

  • 1 VGA, 4 USB 3.0 (rear)
  • 2 SuperDOM (Disk on Module) ports
  • 750W Redundant Power Supplies Platinum Level High-efficiency



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Optimised For Cloud Computing

Optimised for cloud computing. Cloud computing provides a variety of advantages including better security, better TCO, 24 hour access and easy implementation.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1029P-WTR | SYS-1029P-WTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1029P-WTR | SYS-1029P-WTR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Dual 10GBase-T LAN ports via Intel X722

Featuring a Dual 10GBase-T LAN network adapter, which delivers high performance. This server is not vendor locked and features wide ranging hardware compatibility.


A 1U Supermicro SuperServer based on 2x Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 1029P-WTR | SYS-1029P-WTR is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 12x 3200Mhz DDR4 memory sockets .

The Supermicro SuperServer 1029P-WTR | SYS-1029P-WTR supports the Intel Xeon Scalable Processors 2nd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1029P-WTR | SYS-1029P-WTR boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1029P-WTR | SYS-1029P-WTR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Cloud Computing Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 1.5TB
