Supermicro SuperServer 1019D-16C-RDN13TP+ SYS-1019D-16C-RDN13TP+

Optimised for Multi-Access Edge Computing (MEC), Network Function Virtualisation (NFV) and Artificial Intelligence (AI). 2 PCI-E 3.0 x16 (FHFL) slots. 9 GbE (1 port for management), 4x 10G SFP+, and 1 Dedicated IPMI LAN.

  • Key Applications - Multi-Access Edge Computing (MEC), Centralised/Cloud Radio Access, Network (C-RAN), Universal Customer Premise, Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualisation (NFV), Artificial Intelligence (AI)
  • Intel® Xeon® D-2183IT Processor, 16-Core, 32 Threads, 2.2 GHz, 100W

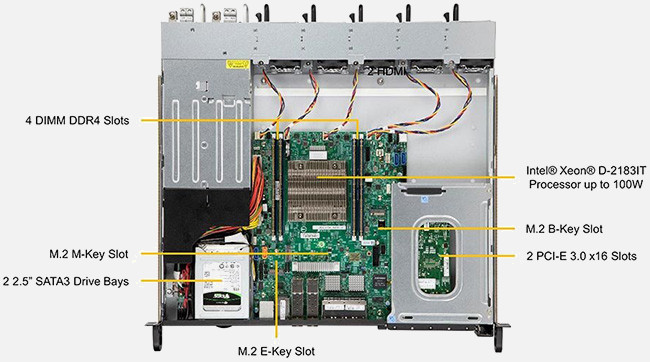

  • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
  • 2 PCI-E 3.0 x16 (FHFL) slots
  • 2 Internal 2.5" SSD bays
  • M.2: 1 M-Key, 2280/22110; 1 E-Key, 2230; 1 B-Key, 2242/3042

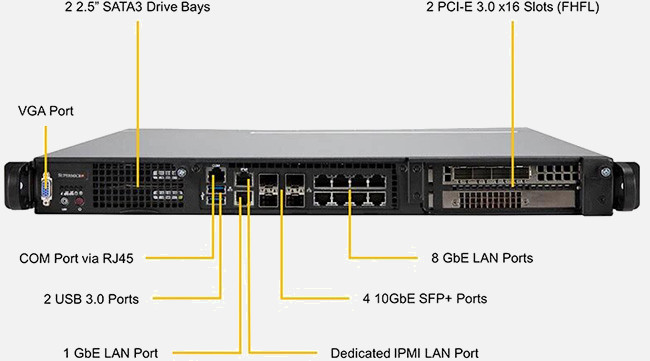

  • 9 GbE (1 port for management), 4x 10G SFP+, and 1 Dedicated IPMI LAN
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45

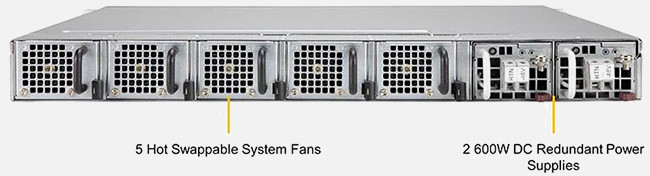

  • 600W -48V DC input Redundant Power Supplies



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 512GB of RAM

Equipable with up to 512GB of RAM, allowing for fast and effective multi-tasking for high level applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1019D-16C-RDN13TP+ | SYS-1019D-16C-RDN13TP+ features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1019D-16C-RDN13TP+ | SYS-1019D-16C-RDN13TP+ can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.


A 1U Supermicro SuperServer based on 0x Intel Xeon D Processors range of processors, the Supermicro SuperServer 1019D-16C-RDN13TP+ | SYS-1019D-16C-RDN13TP+ is configurable with up to 2x Hot-Swap Drives drive bays, and designed for optimal performance with 4x DDR4 memory sockets .

The Supermicro SuperServer 1019D-16C-RDN13TP+ | SYS-1019D-16C-RDN13TP+ supports the family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1019D-16C-RDN13TP+ | SYS-1019D-16C-RDN13TP+ boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1019D-16C-RDN13TP+ | SYS-1019D-16C-RDN13TP+ Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon D Processors
  • Range: 5G Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 64GB
