Supermicro 1029P-NES32R SuperStorage SSG-1029P-NES32R

Optimised for IOPS Intensive Application, Database Application, Hyperconverged Infrastructure. 2x PCI-E 3.0 x16 (FHHL) slots, 1x PCI-E 3.0 x4 (LP) slot, 32x Hot-swap PCI-E EDSFF-S drive slots, 2x 10GBase-T LAN ports. Redundant Power Option.

  • Ideal for - IOPS Intensive Application - Database Application - Hyperconverged Infrastructure
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x4 (LP) slot
  • 32 Hot-swap PCI-E EDSFF-S drive slots
  • 2x 10GBase-T LAN ports via Intel X550
  • 8x 40x56mm counter-rotation PWM fan
  • 1600W Redundant Power Supplies Titanium Level (96%)



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 6TB Of RAM

Equipable with up to an huge 6TB of RAM, which allows for quick and effective multi-tasking for even the most RAM intensive applications.

Hyperconverged Infrastructure Optimised

Optimised for hyperconverged infrastructure. Through leveraging hyperconverged infrastructure you can enjoy lower costs, increased performance and increased data protection.

Configure With Hot-Swap Drives

The Supermicro SSG-1029P-NES32R SuperStorage | 1029P-NES32R features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

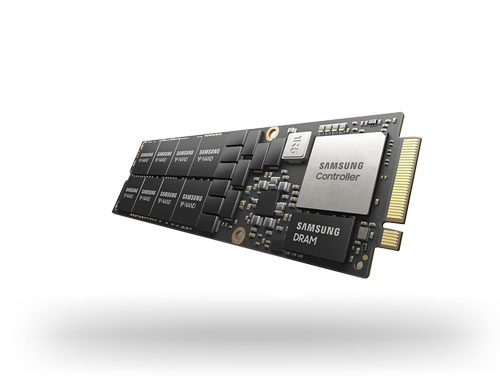

Configure with PCIe NF1

Configure your system with PCIe NF1, the very latest storage technology, which delivers ultra high density of capacity and storage performance.

Intel X550-AT2 Dual Port 10GBase-T

Featuring an Intel X550-AT2 Dual Port 10GBase-T network adapter which delivers high performance. This server is fully free from vendor lock-in and features wide ranging hardware and software compatibility.


A 1U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SSG-1029P-NES32R SuperStorage | 1029P-NES32R is configurable with up to 0x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 3200Mhz DDR4 memory sockets .

The Supermicro SSG-1029P-NES32R SuperStorage | 1029P-NES32R supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SSG-1029P-NES32R SuperStorage | 1029P-NES32R boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SSG-1029P-NES32R SuperStorage | 1029P-NES32R Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Hyperconverged Infrastructure Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: PCIe NF1
  • Maximum RAM Capacity: 3.1TB
