S2600BP - 2U Multi-Node Intel Servers

Configure a density-optimized S2600BP Intel Server, specifically built and designed for use in hyper-converged, storage, high performance computing, cloud and data analytics applications.

S2600BP Intel Servers are powered by Intel Xeon Scalable processors and deliver networking flexibility with Dual 10GBase-T or 10G SFP+ modules.



Intel Nutanix H2224XXLR3 Buchanan Pass Multi Node Server - Integrated 10Gb LAN Ports - 6x SAS/SATA Drives per node

4 Nodes, Redundant Power Supply, Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $7,319
Configure
Ultra High-Performance 2.5" Drives NVMe Drives
Intel H2224XXLR3 Buchanan Pass Multi Node Server - Integrated 10Gb LAN Ports - 6x SAS/SATA Drives per node

4 Nodes, Redundant Power Supply, Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $9,105
Configure
Ultra High-Performance 3.5" Drives
Intel H2312XXLR3 Buchanan Pass Multi Node Server - Integrated 10Gb LAN Ports - 3x SAS/SATA Drives per node

4 Nodes, Redundant Power Supply, Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
3.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $10,129
Configure
Ultra High-Performance 2.5" Drives
Intel H2204XXLRE Buchanan Pass Multi Node Server - Integrated 10Gb LAN Ports - 1x SAS/SATA Drives per node

4 Nodes, Redundant Power Supply, Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $10,129
Configure
Intel H2224XXLR3 Buchanan Pass High Memory Multi Node Server - Integrated 10Gb LAN Ports - 6x SAS/SATA Drives per node

4 Nodes, Redundant Power Supply, Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $15,077
Configure
Intel Server System VMware Virtual SAN (VSAN) VRN2224BPHY4R

2U 4 nodes Intel® Server System certified for VMware Virtual SAN. Dual 10GbE SFP+ Intel Connectivity. Intel Remote Management Module Lite 2.

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
HDD Size:
2.5" Drives
Configure From: $15,389
Configure
Intel Server System VMware Virtual SAN (VSAN) VRN2224BPHY6R

2U 4 nodes Intel Server System certified for VMware Virtual SAN. Dual 10GbE SFP+ Intel Connectivity. Intel Remote Management Module Lite 2.

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
HDD Size:
2.5" Drives
Configure From: $17,068
Configure
Intel Server System VMware Virtual SAN (VSAN) VRN2224BPAF6R

2U 4 nodes Intel® Server System H2224XXLR3 certified for VMware Virtual SAN (VSAN). Dual 10GbE SFP+ Intel Connectivity. Intel Remote Management Module Lite 2.

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
HDD Size:
2.5" Drives
Configure From: $20,667
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

Intel Servers deliver scorching fast performance, security, flexibility and are ideal for your data center.

High memory capacity, storage, networking and I/O flexibility combine with ground-breaking design to deliver an extraordinary and reliable server solution for business IT, cloud, HPC and data center applications.

Discover The Benefits

  • 2U rack servers optimised for density, featuring high-speed networking and I/O.
  • Platform optimised for multi-cloud, data fuelled enterprise.
  • Faster time to market with ground-breaking data center solutions.

Key Features

  • Support for two socket 2nd Generation Intel® Xeon® Scalable processors.
  • Networking flexibility with Dual 10GBase-T or 10G SFP+ modules.
  • Up to 165W processor TDP for high performance workloads in a 2U air-cooled chassis. Liquid-Cooling compatible options are available.
  • Supports Intel® Optane™ DC persistent memory.
  • Hot-swappable compute modules, storage, and power supplies.
  • x16 PCIe* slot per module enabling additional network options.
  • Support for up to 2x NVMe* SSDs per node in a 24 drive chassis.

Target Applications

  • Ideal for workload with real-time compute requirements.
  • Optimized for cost-effective warm tier storage and hyper-converged infrastructure (HCI) .
  • Designed for cloud infrastructure with compute-intensive requirements.

Intel Servers support Intel Xeon Scalable Processors, which deliver scorching fast performance and the I/O necessary to eliminate performance bottlenecks. Server solutions powered by 2nd Gen Intel Xeon Processors thrive in computationally intensive environments and ideal for handling business server and hosting server demands.

With Intel QAT (Quick Assist Technology, applications can be accelerated. Intel QAT delivers significant increases in the performance and efficiency of standard platform solutions.

Airtight Security

Intel Xeon Scalable processors feature security without compromise, combining a multitude of features and technologies to help safeguard your system.

Intel Quick Assist technology provides a software-enabled base for security and authentication. Intel Xeon Scalable processors also feature Intel Key Protection Technology, enabled via Intel QAT. Intel KPT aids in secure private key management.

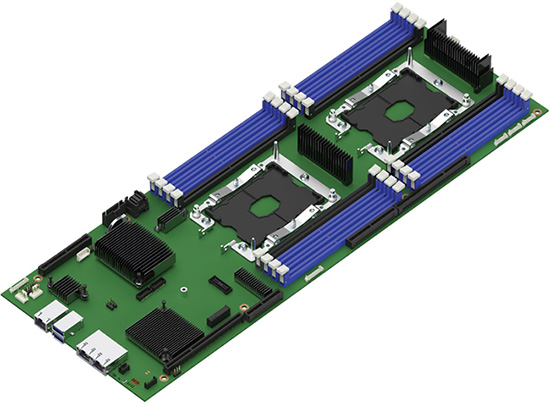

The Intel Server Board S2600BP is expertly designed for demanding use cases such as high-performance computing (HPC), AI, cloud applications that require hyper-converged infrastructure and other high-performance workloads which require the highest density of processing power and memory.

The Intel Server Board S2600BP is optimized for use with 2nd Gen Intel Xeon Scalable processors and utilizes the latest technology such as Intel Optane DC persistent memory which helps maximize memory performance.

This high-density solution enhances an organization’s ability to move, store and process data much faster for compute intensive workflows.

Key Features

  • Dual socket 2nd Gen Intel Xeon Scalable processors supported.
  • Intel Optane DC persistent memory supported.
  • Up to 165W TDP high performance workloads in a 2U air-cooled chassis, with liquid cooling options compatible.
  • Dual 10GBase-T or 10G SFP+ modules deliver networking flexibility.
  • Up to 2x NVMe SSDs per node supported in a 24-drive chassis.
  • Compute modules, power supplies and storage are hot-swappable.

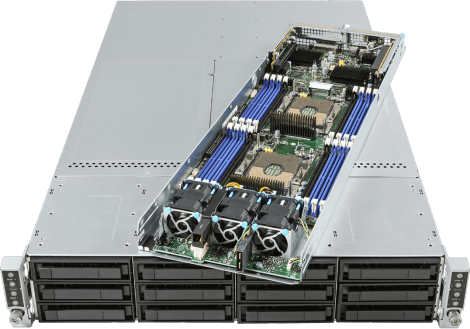

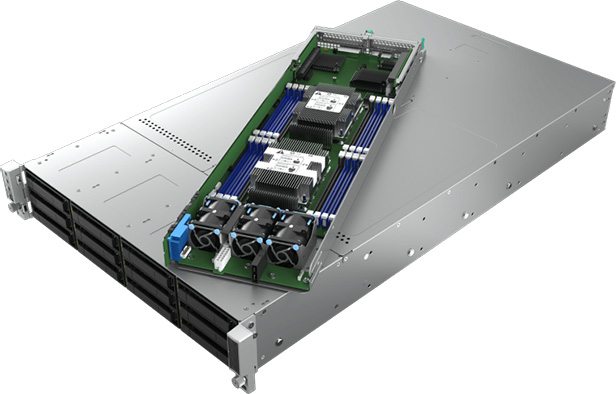

Intel servers built with the H2000P chassis are specifically designed for use in HPC, cloud, data analytics, storage and hyper-converged computing applications. Powered by 2nd Gen Intel Xeon Scalable processors and with up to 16 DDR4 DIMM slots per system, Intel servers built with the H2000P chassis maximizes memory and processor bandwidth to meet intensive computational demands.

Key Features

  • 2U Chassis dimensions: 17.24” width x 30.35” length x 3.46” height
  • Up to 4x compute modules per 2U chassis with support for up to 2x processors per module (8x processors per system)
  • Intel servers with the H2000P chassis support the Intel Server Board S200BP and are powered by Intel Xeon Scalable processors (8x per system, 2x per compute module).
  • Intel servers with the H2000P chassis support up to 24x 2.5” drives, 12x 3.5” drives or 3x 2.5” drives.
  • Comes with 2x 2130W AC (80 PLUS Platinum) Common Redundant power supplies.

Optimal for management of HPC clusters.
Perfect for hot & warm tier data & dense NVMe storage.
Designed for cloud infrastructure at scale.

Purpose Built for Outstanding Compute Density

Designed and built for ceiling shattering performance, high-speed networking, compute density and enhanced uptime.

  • High Performance Computing with real-time compute requirements.
  • HCI for scale out utilising networking for flexibility and agility.
  • Data analytics that require large compute power
  • Warm tier data storage
  • Cloud infrastructure with intense compute demands
  • Telco datacenter
  • Public and hybrid cloud infrastructure

  • Scale-up high performance storage
  • Scale-out storage for HCI
  • Genomic Sequencing
  • High frequency trading
  • Computational fluid dynamics
  • Seismic modelling

Find the Ideal Server For Your Business


R1000WF Family R2000WF Family S2600BP Family S9200WK Family
Form Factor 1U 2U 2U 2U
Processor Dual Intel Xeon Scalable Dual Intel Xeon Scalable Dual Intel Xeon Scalable Intel Xeon Platinum 9200 processors with up to 56 core
Server Board Intel Server Board S2600WF family Intel Server Board S2600WF family Intel Server Board S2600BP family Intel Server Board S9200WK family
Drives 4x 3.5" hot-swap drives 24x 2.5” or 12x 3.5” drives Up to 2x NVMe SSDs per node in a 24 drive chassis Up to 8x M.2 SSDs per DCB with 1U compute modules; Up to 4x M.2 SSDs & 4x hot-swap U.2 NVMe* SSDs with 2U Compute Modules M.2 and U.2 number and capacity configurable
Power 1100W AC/750W DC redundant capable power supply options 1300W AC/1100W AC/750W DC redundant capable power supply options Two 2130W AC (80 PLUS Platinum) redundant power supplies included 3x hot-swap CRPS 2100 W (Platinum) or 1600 W (Titanium) PSUs
Networking 10G SFP+ and 10GBase-T OCP mezzanine modules 10G SFP+ and 10GBase-T OCP mezzanine modules Dual 10GBase-T or 10G SFP+ modules Integrated 1Gbase-T RJ45 (two ports per compute module), optional shared 1Gbase-T RJ45 management port chassis card
