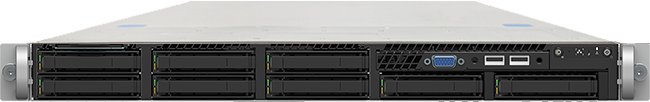

R1000WF - 1U Intel Servers

The R1000WF rack server ranges features 1U system that deliver high memory capacity, networking, storage and I/O flexibility to scale your business as it grows, progresses and evolves.

Powered by Intel Xeon Scalable processors, these high-performance Intel Server Board S2600WF-based systems are designed and built to deal with your most demanding workloads.



2.5" Drives NVMe Drives 10Gb Lan
Intel R1208WFTYSR Wolf Pass Server - Integrated 10Gb LAN Ports

Dual Intel 10GbE Network ports, 2x PCIe x16 Gen3 slots, Intel Server Management port - IPMI 2.0 & Redfish, optional redundant power supply.

U Size:
1U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $3,257
Configure
3.5" Drives
Intel R1304WFTYSR Wolf Pass Server - Integrated 10Gb LAN Ports

Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply.

U Size:
1U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
3.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $3,340
Configure
Intel R1208WFTYSR Wolf Pass High Memory Server - Integrated 10Gb LAN Ports

Dual Intel 10GbE Network ports, 2x PCIe x16 Gen3 slots, Intel Server Management port - IPMI 2.0 & Redfish, optional redundant power supply.

U Size:
1U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $4,750
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

Intel R1000WF Servers deliver a powerful compute platform for the multi-cloud, data-fuelled enterprise which allows for high scalability and resiliency with no I/O compromise to support a wide variety of workloads.

Compute Performance, Massive Memory Capacity, and High Efficiency.

The Intel Server Board S2600WF product family efficiently provides power and performance in a 1U rackmount server form factor featuring energy efficient and high-performance dual 2nd Gen Intel Xeon Scalable processors.

Innovative design combines with high memory capacity, storage, networking and I/O flexibility to deliver an exceptional and reliable server solution for business IT, data center, HPC, appliance and HPC applications.

Key Features

  • Part of the Intel Server System R1000WF family
  • Powered by the Intel Xeon Scalable processor family
  • Up to 24x DDR4 DIMMs and up to 1.5TB total memory
  • 1U rack server options
  • 96 PCIe Gen 3 lanes available for maximum I/O capacity
  • Supports an optional 24x 2.5” or 12x 3.5” hot-swap hard drives
  • 1U system with up to 24x NVMe SSDs
  • Two 80mm M.2 modules
  • Up to 4 OCuLink* connectors for direct attach PCIe 2.5-inch SSD support
  • Dual 10GbE LAN ports optional
  • Redundant power supplies. 1300 W AC Titanium efficiency, 1100 W AC Platinum efficiency, and 750 W DC power supply options

Intel Servers support Intel Xeon Scalable Processors, which deliver scorching fast performance and the I/O necessary to eliminate performance bottlenecks. Server solutions powered by 2nd Gen Intel Xeon Processors thrive in computationally intensive environments and are ideal for handling business server and hosting server demands.

With Intel QAT (Quick Assist Technology) applications can be accelerated. Intel QAT delivers significant increases in the performance and efficiency of standard platform solutions.

Airtight Security

Intel Xeon Scalable processors feature security without compromise, combining a multitude of features and technologies to help safeguard your system.

Intel Quick Assist technology provides a software-enabled base for security and authentication. Intel Xeon Scalable processors also feature Intel Key Protection Technology, enabled via Intel QAT. Intel KPT aids in secure private key management.


Built with Intel Quality, Reliability, and Performance

Intel Servers are products are backed by Intel’s design excellence and manufacturing expertise to provide processing power with high levels of flexibility, reliability and manageability.


Optimal for management of HPC clusters.
Perfect for hot & warm tier data & dense NVMe storage.
Designed for cloud infrastructure at scale.

Find the Ideal Server For Your Business


R1000WF Family R2000WF Family S2600BP Family S9200WK Family
Form Factor 1U 2U 2U 2U
Processor Dual Intel Xeon Scalable Dual Intel Xeon Scalable Dual Intel Xeon Scalable Intel Xeon Platinum 9200 processors with up to 56 core
Server Board Intel Server Board S2600WF family Intel Server Board S2600WF family Intel Server Board S2600BP family Intel Server Board S9200WK family
Drives 4x 3.5" hot-swap drives 24x 2.5” or 12x 3.5” drives Up to 2x NVMe SSDs per node in a 24 drive chassis Up to 8x M.2 SSDs per DCB with 1U compute modules; Up to 4x M.2 SSDs & 4x hot-swap U.2 NVMe* SSDs with 2U Compute Modules M.2 and U.2 number and capacity configurable
Power 1100W AC/750W DC redundant capable power supply options 1300W AC/1100W AC/750W DC redundant capable power supply options Two 2130W AC (80 PLUS Platinum) redundant power supplies included 3x hot-swap CRPS 2100 W (Platinum) or 1600 W (Titanium) PSUs
Networking 10G SFP+ and 10GBase-T OCP mezzanine modules 10G SFP+ and 10GBase-T OCP mezzanine modules Dual 10GBase-T or 10G SFP+ modules Integrated 1Gbase-T RJ45 (two ports per compute module), optional shared 1Gbase-T RJ45 management port chassis card

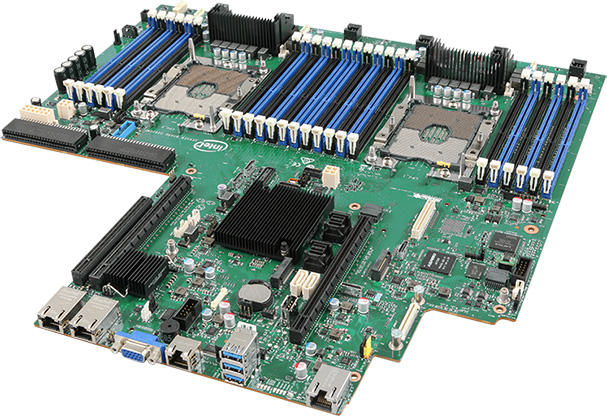

Intel Server Board S2600WF

Intel Server Boards deliver performance, flexibility and security you can trust. The Intel Server Board S2600WF provides a reliable and adaptable solution for adoption through data centers, storage deployments, Network Function Virtualization Infrastructure, cloud computing deployments and managing HPC workloads.

The Intel Server Board S2600WF family is powered by 2nd Gen Intel Xeon Scalable processors and utilises the latest technologies such as Intel Optane DC persistent memory.

The Intel Server Board S2600WF family provide highly efficient, blazing-fast performance in a 1U or 2U rackmount server featuring energy efficient dual Intel Xeon scalable processors. With high memory capacity, storage, networking and I/O flexibility, Intel servers are outstanding choices for business IT, cloud, appliance, data center and high-performance computing applications.

Key Features

  • Dual socket 2nd Gen Intel Xeon Scalable processors supported.
  • Intel Optane DC persistent memory supported.
  • Up to 24x DDR4 DIMMs.
  • 4x onboard PCIe OCuLink connectors for direct attach NVMe 2.5” SSD support.
  • Flexible Networking.
  • Both 1U and 2U systems, support for up to 24x NVMe drives.
  • Full line of Intel RAID Modules supported.
