Configure TYAN servers powered by the ground-breaking, high performance, next-gen optimised 3rd Gen Intel Xeon Scalable Processor family.
3rd Gen Intel Xeon Scalable processors deliver:

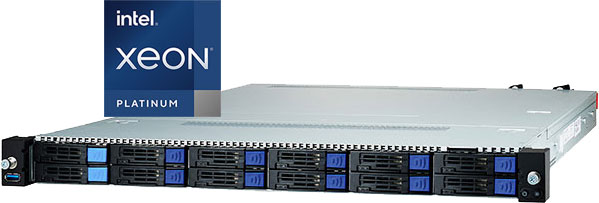

1U2S Cloud Server, 4 LFF + 4 NVMe U.2. 2x FH/HL PCIe Gen.4x16 slots. Redundant power supply.
1U2S Cloud Server, 12 SFF. 2x FH/HL PCIe Gen.4 x16 slots. Redundant power supply.
TYAN systems powered by the latest 3rd Gen Intel Xeon Scalable processors possess built-in acceleration and advanced security capabilities. The processors in this range have been designed through years of ground-breaking innovation to excel in even the most computationally intensive environments.

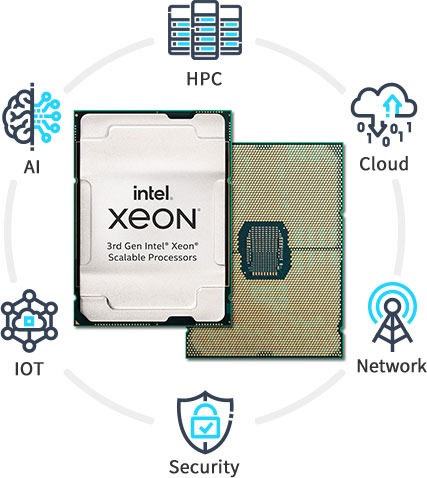

TYAN servers powered by 3rd Gen Intel Xeon Scalable processors are optimised for cloud, HCI, security, enterprise, security, AI and IoT workloads.

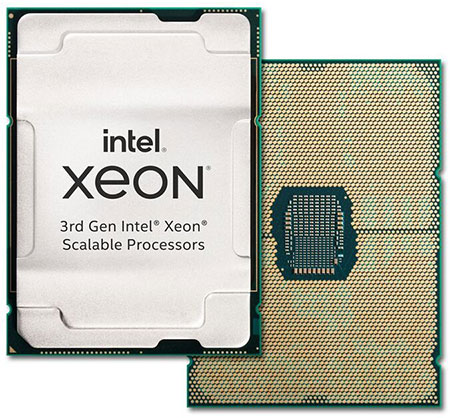

3rd Gen Intel Xeon Scalable processors feature up to 40 powerful cores. Through leveraging the new features of 3rd Gen Xeon Scalable processors which include higher per-core performance, enhanced bandwidth, Intel Crypto Acceleration, Intel SGX and Intel Optane persistent memory, TYAN server solutions powered by 3rd Gen Intel Xeon Scalable processors are designed and built to meet even the most demanding cloud, AI, enterprise and HPC workloads.
Built-in workload and service acceleration.
Intel Deep Learning Boost (Intel DL Boost) is specifically built in for the flexibility to run demanding and complex AI workloads on the same hardware as your existing workloads.
All 3rd Gen Intel Xeon Scalable processors have int8 available. Vector Neural Network Instructions (VNNI) enhance inference workloads through maximising use of compute resources, enhancing cache utilisation and curtailing potential bandwidth bottlenecks.
Select 3rd Gen Intel Xeon Scalable processors have bfloat16 available, the industries very first x86 support of Brain Floating Point 16-bit (blfloat16) 5 delivers improved artificial intelligence inference and training performance with Intel Deep Learning Boost.
High Performance Computing (HPC) boosts innovation in fields like manufacturing, life science, energy, oil and gas, finance and many more. Powering these diverse HPC workloads demands flexibility and the potential to scale.
TYAN servers powered by 3rd Gen Intel Xeon Scalable processors provide incredible performance for compute-intensive HPC applications with huge improvements over the previous generations. Core architecture innovations, enhanced memory bandwidth, advanced security features, built-in AI and HPC acceleration allow users to reduce complexity and unleash the full power of their data. 3rd Gen Intel Xeon Scalable processors are designed and crafted through decades of innovation and optimised for the most demanding workload requirements both on-premises and in the cloud.
Intel Software Guard Extensions (Intel SGX) delivers fine grain data protection through application isolation in memory, separate from the OS or hardware configuration.
Intel Crypto Acceleration delivers built-in Intel Secure Hash Algorithm, Vector AES-NI, Vector CLMUL, VPMADD52 instructions and RSA/DH encryption protocols.
Intel Total Memory Encryption provides full physical memory encryption support to improve data and VM protection.
Intel Platform Firmware Resilience (Intel PFR) utilises an Intel FPGA to safeguard, detect and fix, delivering NIST SP800-193 firmware resiliency. Platform firmware can be validated prior to execution, whilst runtime monitoring and filtering help safeguard against manipulation. In the event of a compromise, Intel PFR delivers automated recovery in minutes.
| Maximum Core Count Supported | Up to 40 |
| Base Frequency Supported | Up to 3.1 GHz |
| Maximum Single-Core Intel Turbo Boost Technology 2.0 Frequency Supported | Up to 4.3 GHz |
| Processor Cache Memory Support | Up to 38.5 MB of L3 Cache (1.375 MB/core) |
| Intel Ultra Path Interconnect (Intel UPI) | Six Intel UPI supported per processor (Up to 10.4 GT/s) |
| Processor Performance Support | Intel Turbo Boost 2.0 Technology, Intel Hyper-Threading Technology (Intel HT), Intel Speed Shift Technology, Enhanced Intel SpeedStep Technology |
| Intel Speed Select Technology (Intel SST) | Intel SST Core Power (SST-CP) and Intel SST Turbo Frequency (SST-TF) features are supported on select processors |
| Intel Deep Learning Boost | VNNI and bfloat16 supported |
| Intel Advanced Vector Extension 512 (Intel AVX-512) Support | Intel AVX-512 with up to 2 FMA support |
| Number of Processor Sockets Supported | 4 or 8 sockets |
| Thermal Design Point (TDP) | Supporting a range from 150W to 260W depending on customer needs and implementation |
| Socket Type | Socket P+ (4189 pins) |
| System Memory Support | 6 channels, Up to DDR4 3200 MT/s (1 DPC) with ECC support
12 DIMMs/socket, Support for 16Gb density DIMMs |
| Intel Optane Persistent Memory Support | Intel Optane Persistent memory 200 series supported on 4-socket systems only |
| Maximum DRAM System Memory Supported | Up to 4.5 TB per socket |
| Supported Chipsets | Intel C620A series chipsets, available with integrated Intel QuickAssist Technology |
| PCH I/O | PCI Express* 3 - Up to 20 lanes (8 GT/s)
USB* 3.0 - Up to 10 ports SATA* 3.0 - Up to 14 ports DMI - Up to 4 lanes, Gen 3 |
| Platform Manageability | Intel Server Platform Services (Intel SPS) and Intel Resource Director Technology (Intel RDT) |
| Storage Manageability | Intel Volume Management Device (Intel VMD) |
Extensive TestingBefore leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.
Customization ServiceOur main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.
