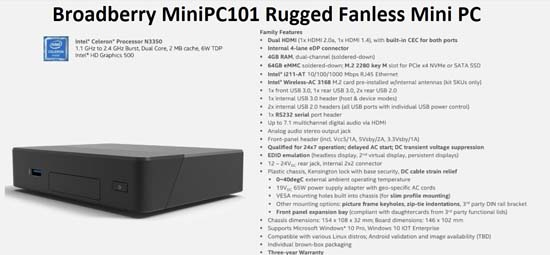

Broadberry MiniPC101 Rugged Fanless Mini PC ®

Qualified for 24/7 sustained operation. for IoT and Commercial Operations

  • • Dimensions 154x108x32 mm

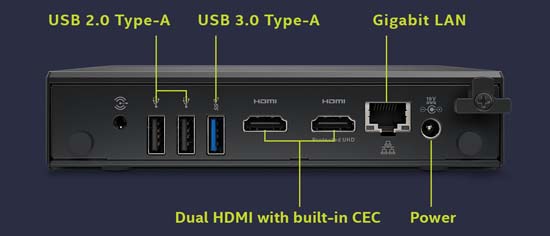

  • • Dual HDMI (1 x HDMI 2.0a, 1 x HDMI 1.4), with built-in CEC for both ports
  • (Support for single 4k@60Hz or dual 1080@60Hz)
  • • IP50 rated fanless and ventless dust-resistant chassis with custom plugs for unused ports
  • • 4GB dual-channel LPDDR3 RAM soldered-down
  • • 64GB eMMC soldered-down; M.2 2280 key M slot for PCIe x4 NVMe or SATA SSD
  • • Intel® i211-AT 10/100/1000 Mbps RJ45 Ethernet
  • • Intel® Wireless-AC 3168 M.2 card pre-installed w/internal antennas (kit SKUs only)
  • • 1 x front USB 3.0, 1 x rear USB 3.0, 2 x rear USB 2.0
  • • 1 x internal USB 3.0 header (host & device modes)
  • • 2 x internal USB 2.0 headers (all USB ports with individual USB power control)
  • • 1 x RS232 serial port header
  • • Up to 7.1 multichannel digital audio via HDMI
  • Powered by Intel Celeron based Processor
  • 1x SO Dimm DDR3 Memory Modules



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Ultra Small Form Factor

This workstation comes in an ultra small form factor, making it supremely space-efficient.


Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.


How to order

You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".
