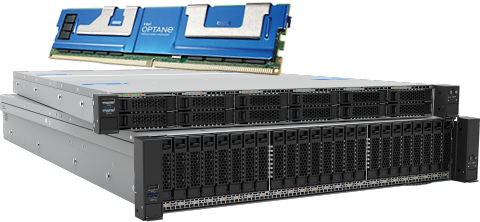

High Memory Servers (Intel Optane Persistent Memory) Intel Servers

Configure High Memory Intel Servers with Intel Optane Persistent Memory.

Intel Optane PMem provides cost-efficient and large capacity memory that enables flexibility and serves as a high performance storage tier.

Intel Optane persistent memory features increased capacity, increased VMs for virtualised and cloud users, significantly higher and cost-efficient capacity for in-memory databases, ultra-fast storage and bigger memory pools.



Intel R1208WFTYSR Wolf Pass High Memory Server - Integrated 10Gb LAN Ports

Dual Intel 10GbE Network ports, 2x PCIe x16 Gen3 slots, Intel Server Management port - IPMI 2.0 & Redfish, optional redundant power supply.

U Size:
1U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $4,750
Configure
Intel M50CYP2UR208 Coyote Pass High Memory Server - 8 Drive Bays. SAS/SATA/NVME

3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
Configure From: $6,346
Configure
Intel R2208WFTZSR Wolf Pass High Memory Server - Integrated 10Gb LAN Ports - 8x NVME Drive Bays

Dual Intel 10GbE Network ports, optional redundant power supply, Intel Server management port - IPMI 2.0 & Redfish

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
Configure From: $8,002
Configure
Intel M50CYP2UR224 Coyote Pass High Memory Server - 24 Drive Bays SAS/SATA (8 can be NVME) High Memory

3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
Configure From: $8,430
Configure
Intel R2224WFTZSR Wolf Pass High Memory Server - Integrated 10Gb LAN Ports - 24x NVME Drive Bays High Memory

Dual Intel 10GbE network ports, optional redundant power supply, Intel Server management port - IPMI 2.0 & Redfish

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
Configure From: $8,823
Configure
Intel H2224XXLR3 Buchanan Pass High Memory Multi Node Server - Integrated 10Gb LAN Ports - 6x SAS/SATA Drives per node

4 Nodes, Redundant Power Supply, Dual Intel 10GbE network ports, 2x PCIe x16 Gen3 slots

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
2x PCIe x16
Configure From: $15,077
Configure
Intel M70KLP 4 Socket High Memory Server - 8 Drive SAS/SATA/NVME Bays

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
Configure From: $23,810
Configure
Intel M70KLP 4 Socket High Memory Server - 24 Drive SAS/SATA/NVME Bays High Memory

3rd Generation Quad Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply

U Size:
2U
Processor Family:
Dual Intel Xeon Scalable Processors
Maximum RAM:
3TB
Chassis Features:
Redundant Power
HDD Size:
2.5" Drives
Expansion Slots:
6x PCIe
Configure From: $26,182
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

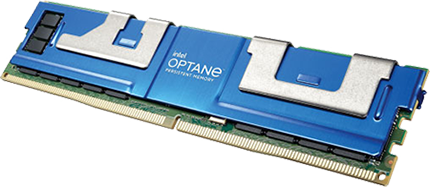

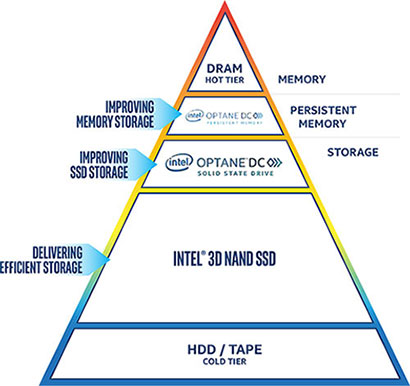

Intel Optane persistent memory delivers a new category that sits between memory and storage and provides the best of both worlds through the convergence of memory and storage product traits.

Available in capacities of 128GB, 256 GB and 512 GB, Intel Optane persistent memory is a significantly larger alternative to DRAM (which is currently capped at 128 GB). With Intel Optane persistent memory you have access to cost-efficient, large capacity memory that delivers flexibility and serves as a high-performance storage tier.

The option of application managed memory also exists, which is key to optimising system performance. Consistent, low latency together with high bandwidth, QoS and endurance of this special Intel technology leads to –

  • Increased capacity
  • Increased VMs for virtualised and cloud users
  • Significantly higher and cost-efficient capacity for in-memory databases
  • Ultra-fast storage
  • Bigger memory pools

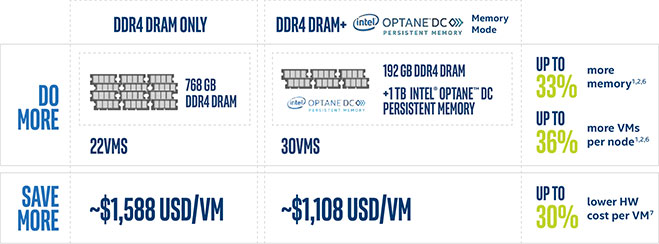

Enjoy increased system performance with more memory, with 3x the performance of NVMe SSDs and a significantly higher endurance than NAND SSDs for write-intensive workloads.


Advanced Memory with Optane™ PMem

Intel Optane persistent memory revolutionises traditional architectures, providing a cost-efficient, large and persistent memory tier. Intel Optane persistent memory speeds up IT transformation to meet the requirements of the data era, delivering ceiling shattering performance levels in memory intensive workloads, virtual machine density and blazing-fast storage capacity.

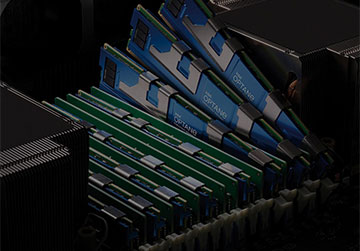

Affordable, Increased Capacity

Intel Optane persistent memory allows you to cost-efficiently boost your memory capacity per socket, obtain value from bigger data sets and boost the utility of the server. PMem is able to enhance TCO through lowered SW licensing costs, power-efficiency and more.

Maximise Your Investments

Intel Optane persistent memory propels infrastructure consolidation. More memory helps to consolidate workloads, focusing them on less nodes, saving on deployments and helping maximise processors that were previously underutilised because of the constraints on memory.

Driving Innovation

An advanced memory technology, Optane PMem delivers blazing fast performance to break through system bottlenecks that significantly inhibit workloads.

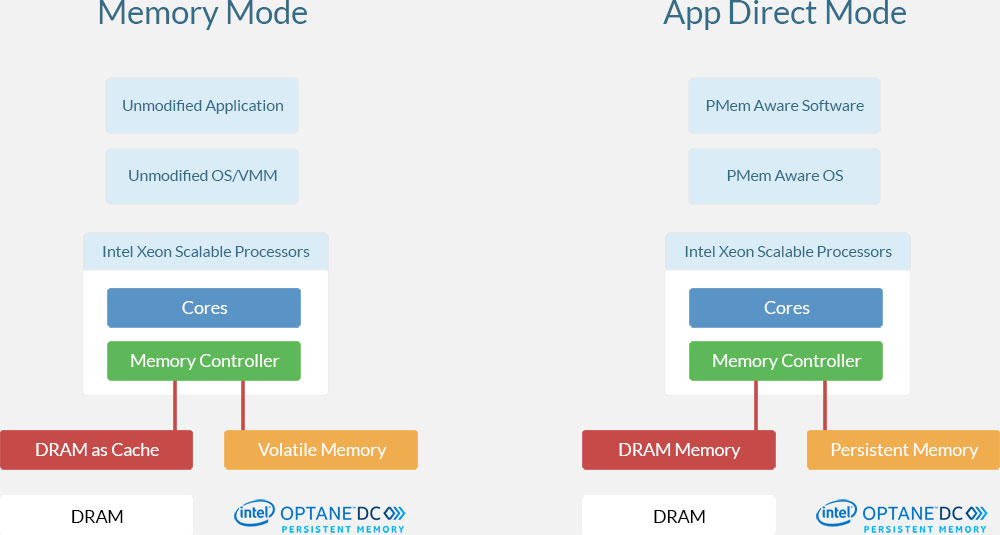

Memory Mode is ideal for large memory capacity and doesn’t need application changes, making Intel Optane persistent memory simple to adopt. When in Memory Mode, Optane PMem extends the amount of available volatile memory visible to the OS. DRAM is utilised as Cache for the Intel Optane PMem. The CPU memory controller uses the DRAM as cache while the Intel Optane persistent memory is used as addressable main memory.

Intel Optane persistent memory in Memory Mode can be an advantage for virtualisation as there is a bigger memory capacity which delivers increased VMs and higher memory per VM at a reduced cost (in comparison to DRAM). I/O bound workloads can also benefit from utilising Memory Mode as Intel Optane persistent memory. This is because it delivers larger memory capacity which supports larger databases and is more cost-efficient than DRAM. When used in Memory Mode, the data in the Intel Optane persistent memory is volatile. It is handled with an encryption key that is discarded when the system is powered down, making the data inaccessible.

In App Direct Mode, software and applications are able to communicate directly to the Intel Optane persistent memory, lessening complexity in the stack. The option exists to have App Direct Mode utilise legacy storage APIs. This enables it to behave as an SSD and can boot an operating system. The OS views Intel Optane persistent memory and DRAM as two distinct memory pools. Like storage it is persistent and like memory it is byte addressable. It is cache coherent, extending persistent memory usage outside of the local node. Consistently low latency, larger data sets are supported.

The benefits delivered by persistent memory add business resilience to systems with quicker restart times as data is retained even during power cycles. Intel Optane persistent memory features larger capacity, high endurance and enhanced bandwidth in comparison to NAND SSDs.

Dual Mode is a subset of App Direct, you can provision it so that part of the Intel Optane persistent memory is in Memory Mode and the rest is in App Direct Node. In Dual Mode, applications are able to utilise high performance storage without the latency of moving data to and from the I/O bus.


Intel Optane persistent memory features 256-AES hardware encryption, ensuring your data remains protected. Whilst in Memory Mode, the Intel Optane persistent memory encryption key is removed when powered down and regenerated at boot, meaning data is no longer accessible. In App Direct Mode data is encrypted using a key on the module. Intel Optane persistent memory is locked at power loss and a passphrase is required to unlock and access the data.

The encryption key is stored within a security metadata region on the module. It can only be accessed by the Intel Optane persistent memory controller. In the event of the module being repurposed or no longer used, a cryptographic erase and DIMM over write are used to ensure data can’t be accessed.

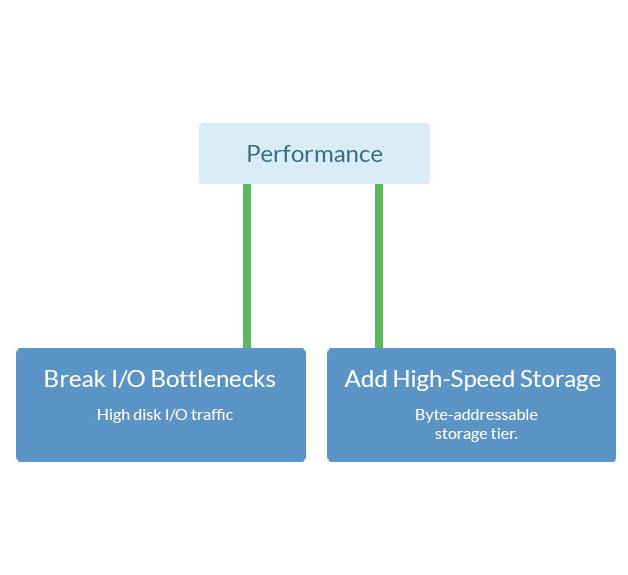

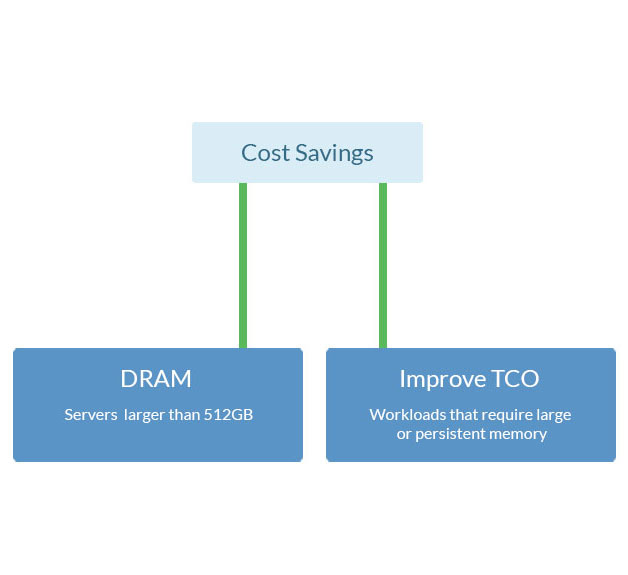

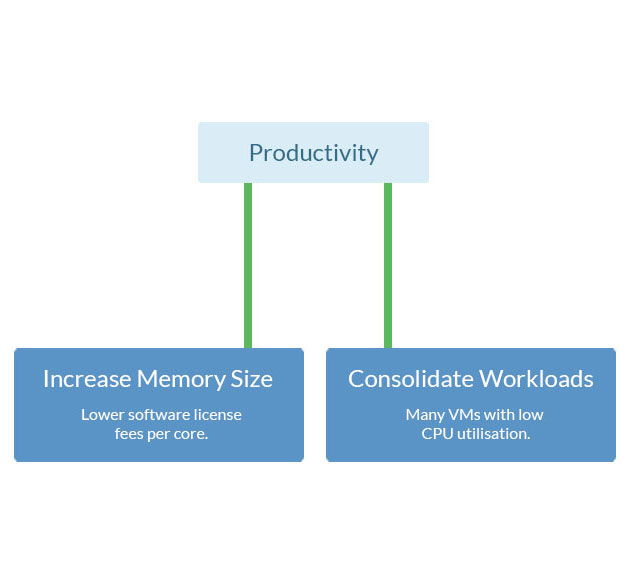

Address and Overcome Key Challenges

Persistent Memory deals with a multitude of importing computing challengers that modern centres face. These include high DRAM costs for large-memory modes, data protection during maintenance or in the event of an outage, emerging workloads that take advantage of hierarchical memory architectures and a lot more.


  • Intel Optane PMem
    100 Series

  • 2nd Generation Intel Xeon Scalable Processors on 2S/4S/8S platform.
  • 8 - 28 Cores
  • 6 Channels Memory
  • 3TB Intel Optane PMem per Socket
  • 4.5TB Total System Memory per Socket
  • 2,666 MT/s DDR4 + Intel Optane PMem
  • 18 W Max Thermal Design Power
  • Intel Optane PMem
    200 Series

  • 3rd Generation Intel Xeon Scalable Processors on 4S platform.
  • 18 - 28 Cores
  • 6 Channels Memory
  • 3TB Intel Optane PMem per Socket
  • 4.5TB Total System Memory per Socket
  • 2,666 MT/s DDR4 + Intel Optane PMem
  • eADR
  • 15 W Max Thermal Design Power
  • Intel Optane PMem
    200 Series

  • 3rd Generation Intel Xeon Scalable Processors on 2S platform.
  • 16-40 Cores
  • 8 Channels Memory
  • 4TB Intel Optane PMem per Socket
  • 6TB Total System Memory per Socket
  • 3,200 MT/s DDR4 + Intel Optane PMem
  • eADR
  • 15 W Max Thermal Design Power

With the emergence of larger persistent memory capacity capabilities, bigger datasets can exist closer to the CPU for quicker processing which leads to greater insights. The enhanced capacities of Intel persistent memory help towards generating a more cost-efficient solution.

Intel Optane persistent memory offers customers large capacity memory to choose from, enabling them to support larger datasets for analysis.

A multitude of mission critical databases and enterprise apps store huge amounts of data in working memory. In the case of a server going down, downtime can be significant as it can take multiple hours to reload the memory array.

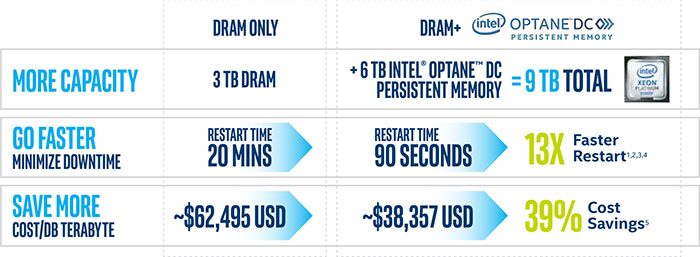

As Intel Optane persistent memory retains data during power cycles, applications can be returned to service significantly faster. This enables cloud, enterprises and communication service provides avoid expensive redundancy costs. For example, SAP HANA can reach a 13x faster restart time and 39% cost savings.


Intel Optane Persistent Memory - Frequently Asked Questions

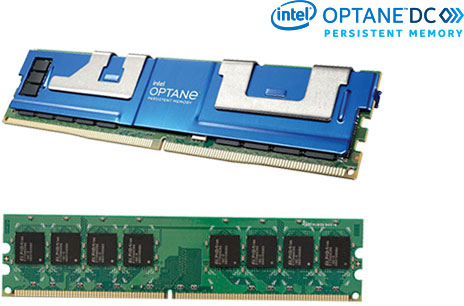

There are a number of differences between Intel Optane Persistent Memory (PMem) and DRAM. The main difference is that even with no power applied to the module, PMem is still able to store data. However with DRAM, data is lost every time power is lost, as it is not persistent.

PMem can go up to significantly higher capacities than traditional DRAM, whilst DRAM modules usually max out at 64GB, PMem modules can reach up to a massive 512GB capacity. PMem also comes with built-in hardware encryption, helping to ensure data at rest is secure.

Intel Optane Persistent Memory is more cost-efficient than DRAM and its ability to increase capacity is far beyond what DRAM is capable of.

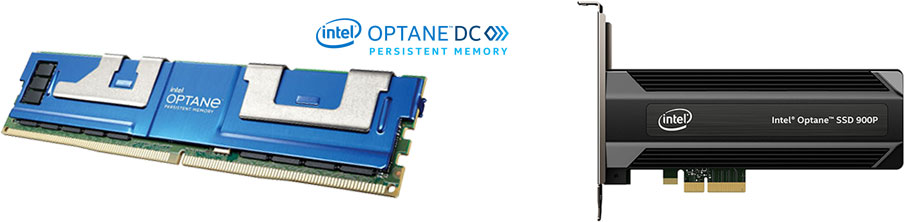

There is a big difference between Intel Optane Persistent Memory and Intel Optane SSDs. Intel Optane PMem operates on the DRAM bus and is packaged in DIMMs. It can be utilised as volatile or persistent memory.

Alternatively, Intel Optane SSDs are solely used for fast storage residing in standard NAND package models and occupies the PCIe bus utilising the NVMe protocol.

There are a multitude of benefits and advantages to Intel Optane Persistent Memory:

  • Native Persistence – You can store data even when powered off.
  • Cost-Efficient, Larger Capacities – With the introduction of larger persistent memory capacities, larger datasets are able to exist closer to the CPU for quicker processing, enabling much better insights.
  • Operational Modes – Intel Optane Persistent Memory features two operating modes, Memory Node and App Direct Node. Memory Mode is ideal for large memory capacity and doesn’t need application changes as the memory is treated as volatile. App Direct Mode delivers large memory capacity and enables applications to communicate with PMem as a 2nd tier memory.
  • Hardware Encryption – PMem features industry standard AES-256 hardware encryption, securing your data. In the event you repurpose or discard the module, a secure cryptographic erase and DIMM overwrite make sure your data isn’t accessed.

Four & Eight Socket Scalable Performance

  • Intel Xeon Platinum 8380HL Processor
  • Intel Xeon Platinum 8380H Processor
  • Intel Xeon Platinum 8376HL Processor
  • Intel Xeon Platinum 8376H Processor
  • Intel Xeon Platinum 8360HL Processor
  • Intel Xeon Platinum 8360H Processor
  • Intel Xeon Platinum 8356H Processor
  • Intel Xeon Platinum 8354H Processor
  • Intel Xeon Platinum 8353H Processor
  • Intel Xeon Gold 6348H Processor
  • Intel Xeon Gold 6330H Processor
  • Intel Xeon Gold 6328HL Processor
  • Intel Xeon Gold 6328H Processor
  • Intel Xeon Gold 5320H Processor
  • Intel Xeon Gold 5318H Processor

Optimised for Highest Per-Core Scalable Performance

  • Intel Xeon Platinum 8380 Processor
  • Intel Xeon Platinum 8368 Processor
  • Intel Xeon Platinum 8362 Processor
  • Intel Xeon Platinum 8362 Processor
  • Intel Xeon Platinum 8360Y Processor
  • Intel Xeon Platinum 8358 Processor
  • Intel Xeon Gold 6348 Processor
  • Intel Xeon Gold 6342 Processor
  • Intel Xeon Gold 6354 Processor
  • Intel Xeon Gold 6346 Processor
  • Intel Xeon Gold 6334 Processor
  • Intel Xeon Gold 6326 Processor
  • Intel Xeon Gold 5317 Processor
  • Intel Xeon Gold 5315Y Processor

Scalable Performance

  • Intel Xeon Platinum 8352Y Processor
  • Intel Xeon Gold 6338 Processor
  • Intel Xeon Gold 6336Y Processor
  • Intel Xeon Gold 6330 Processor
  • Intel Xeon Gold 5320 Processor
  • Intel Xeon Gold 5318Y Processor
  • Intel Xeon Silver 4314 Processor

Maximum Intel® SGX Enclave Capacity

  • Intel Xeon Platinum 8380 Processor
  • Intel Xeon Platinum 8368Q Processor
  • Intel Xeon Platinum 8368 Processor
  • Intel Xeon Platinum 8352S Processor
  • Intel Xeon Gold 5318S Processor

Cloud Optimised for VM Utilisation

  • Intel Xeon Platinum 8358P Processor
  • Intel Xeon Platinum 8352V Processor

Liquid Cooled

  • Intel Xeon Platinum 8368Q Processor

Networking/NFV Optimised

  • Intel Xeon Platinum 8351N Processor
  • Intel Xeon Gold 6338N Processor
  • Intel Xeon Gold 6330N Processor
  • Intel Xeon Gold 5318N Processor

Media Processing Optimised

  • Intel Xeon Platinum 8352M Processor

Long-Life Use and NEBS-Thermal Friendly

  • Intel Xeon Gold 6338T Processor
  • Intel Xeon Gold 5320T Processor

Single-Socket Optimised

  • Intel Xeon Platinum 8351N Processor
  • Intel Xeon Gold 6314U Processor
  • Intel Xeon Platinum 8280L Processor
  • Intel Xeon Platinum 8280 Processor
  • Intel Xeon Platinum 8276L Processor
  • Intel Xeon Platinum 8276 Processor
  • Intel Xeon Platinum 8270 Processor
  • Intel Xeon Platinum 8268 Processor
  • Intel Xeon Platinum 8260Y Processor
  • Intel Xeon Platinum 8260L Processor
  • Intel Xeon Platinum 8260 Processor
  • Intel Xeon Platinum 8256 Processor
  • Intel Xeon Platinum 8253 Processor
  • Intel Xeon Gold 6262V Processor
  • Intel Xeon Gold 6258R Processor
  • Intel Xeon Gold 6258R Processor
  • Intel Xeon Gold 6256 Processor
  • Intel Xeon Gold 6254 Processor
  • Intel Xeon Gold 6252N Processor
  • Intel Xeon Gold 6252 Processor
  • Intel Xeon Gold 6250L Processor
  • Intel Xeon Gold 6250 Processor
  • Intel Xeon Gold 6248R Processor
  • Intel Xeon Gold 6248 Processor
  • Intel Xeon Gold 6246R Processor
  • Intel Xeon Gold 6246 Processor
  • Intel Xeon Gold 6244 Processor
  • Intel Xeon Gold 6242R Processor
  • Intel Xeon Gold 6242 Processor
  • Intel Xeon Gold 6240Y Processor
  • Intel Xeon Gold 6240R Processor
  • Intel Xeon Gold 6240L Processor
  • Intel Xeon Gold 6240 Processor
  • Intel Xeon Gold 6238T Processor
  • Intel Xeon Gold 6238R Processor
  • Intel Xeon Gold 6238L Processor
  • Intel Xeon Gold 6238 Processor
  • Intel Xeon Gold 6234 Processor
  • Intel Xeon Gold 6230T Processor
  • Intel Xeon Gold 6230R Processor
  • Intel Xeon Gold 6230N Processor
  • Intel Xeon Gold 6230 Processor
  • Intel Xeon Gold 6226R Processor
  • Intel Xeon Gold 6226 Processor
  • Intel Xeon Gold 6222V Processor
  • Intel Xeon Gold 6212U Processor
  • Intel Xeon Gold 6210U Processor
  • Intel Xeon Gold 6209U Processor
  • Intel Xeon Gold 6208U Processor
  • Intel Xeon Gold 5222 Processor
  • Intel Xeon Gold 5220T Processor
  • Intel Xeon Gold 5220S Processor
  • Intel Xeon Gold 5220R Processor
  • Intel Xeon Gold 5220 Processor
  • Intel Xeon Gold 5218T Processor
  • Intel Xeon Gold 5218R Processor
  • Intel Xeon Gold 5218N Processor
  • Intel Xeon Gold 5218B Processor
  • Intel Xeon Gold 5218 Processor
  • Intel Xeon Gold 5217 Processor
  • Intel Xeon Gold 5215L Processor
  • Intel Xeon Gold 5215 Processor
  • Intel Xeon Silver 4215R Processor
  • Intel Xeon Silver 4215 Processor

On average, the Intel Optane Persistent Memory 200 Series provides 32% more bandwidth than its predecessor, with 6TB total memory socket. The 200 Series also features 2 more memory channels and increased Intel Optane PMem and system memory per socket. The Intel Optane PMem 200 Series features up to 40 cores, while the 100 Series caps out at 28 cores. Both series feature AES 256 Encryption, Secure Erase and up to 512GB modules.

Intel Optane PMem 100 Series Intel Optane PMem 200 Series
Cores 8-28 Cores 16-40 Cores
Memory Channels 6 8
Intel Optane PMem per Socket 3TB 4TB
Total System Memory per Socket 4.5TB 6TB
DDR4 + Intel Optane PMem 2,666MT/s 3,200MT/s
Thermal Design Power 18 W Max 15 W Max

Persistent memory can be utilised in a multitude of different ways to provide reduced latency for applications, including:

Data Analytics: Intel Optane PMem offers opportunities for optimising the query processing performance of database workloads, especially its rare mix of low latency, massive capacity, persistence and byte-addressability.

Virtualisation: Intel Optane Persistent Memory possesses the cost-efficiency, memory capacity and performance to make it an ideal choice for virtualisation applications.

Database: Through significantly boosting the capacity of available system memory, PMem can help analytics database workloads through keeping more “hot data” closer to the CPU.

Fraud Detection: By utilising persistent memory, the speed at which financial institutions are able to run data analytics on millions of records and detect fraudulent behaviour is greatly increased, ultimately helping companies avoid financial losses and negative impact on the brand.

Cyberthreat Analysis: Persistent memory enables businesses to act fast to detect and then safeguard themselves from ever-increasing cyberthreats.

Web-scale Personalisation: With persistent memory, companies are able to craft unique online experiences for each user by presenting relevant content and adverts, which leads to increased clickthrough rates and potentially increased revenue for the business.

Financial Trading: Financial trading applications are able to utilise persistent memory to quickly process and execute financial transactions, enabling them to grab the competitive advantage and create higher revenue opportunities.

Internet Of Things (IOT): Significantly quicker processing of massive datasets in real time lowers time to value.


Intel Optane Persistent Memory 200 Series Data Sheet

Product Family Intel Optane Persistent Memory 200 Series
Compatible Processor 3rd Gen Intel Xeon Scalable processors on 4-socket platforms
Form Factor Persistent Memory Module
SKU 128 GB 256 GB 512 GB
User Capacity 126.7 GB 253.7 GB 507.7 GB
Platform Capacities 4S systems: 3 TB PMem + 1.5 TB DRAM per socket (4.5 TB total) per socket
2S systems: 4TB PMem + 2 TB DRAM per socket (6 TB total) per socket
MOQ 4 50 4 50 4 50
Technology Intel® Optane™ Technology
AFR ≤ 0.44
Endurance 100% Writes 15W 256B 292 PBW 497 PBW 410 PBW
Endurance 67% Read; 33% Write 15W 256B 224 PBW 297 PBW 242 PBW
Endurance 100% Write 15W 64B 73 PBW 125 PBW 103 PBW
Endurance 67% Read; 33% Write 15W 64B 56 PBW 74 PBW 60 PBW
Bandwidth 100% Read 15W 256B 7.45 GB/s 8.10 GB/s 7.45 GB/s
Bandwidth 67% Read; 33% Write 15W 256B 4.25 GB/s 5.65 GB/s 4.60 GB/s
Bandwidth 100% Write 15W 256B 2.25 GB/s 3.15 GB/s 2.60 GB/s
Bandwidth 100% Read 15W 64B 1.86 GB/s 2.03 GB/s 1.86 GB/s
Bandwidth 67% Read; 33% Write 15W 64B 1.06 GB/s 1.41 GB/s 1.15 GB/s
Bandwidth 100% Write 15W 64B 0.56 GB/s 0.79 GB/s 0.65 GB/s
DDR Frequency Up to 2666 MT/s (4-socket systems); Up to 3,200 MT/s (2-socket systems)
Operating Modes App Direct only (4-socket systems); App Direct & Memory Mode (2-socket systems)
Max TDP 15W 18W
Temperature (TJMAX) ≤ 83°C (85°C shutdown, 83°C default) media temperature
Temperature (TAMBIENT) 48°C @ 2.4m/s for 12W
Temperature (TAMBIENT) 43°C @ 2.7m/s for 15W


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:
