Database Appliance Server

Designed for the most demanding database applications, Broadberry's high performance database appliance boasts a blisteringly fast 1.6 million IOPS and is powered by the latest HPC components.


IOPS-hungry applications like Oracle, SQL, and SAP can move business faster, better inform decisions, and improve customer service, but providing the performance they need can be costly. By taking advantage of the latest NVMe technology, the Broadberry SQL appliance can reduce latency by up to 90% and use 84% less rack space, for 80% lower cost/GB than conventional spinning disk solutions.

With power efficiency becoming ever more important to businesses, the Broadberry SQL database appliance has been designed from the ground up for ultra power efficiency, boasting almost 90% savings in power when compared to conventional database servers.


Broadberry CyberServe DB-400®
  • 400,000 IOPs
  • 2 x Intel® Xeon® Scalable Processor Silver Series
  • 64Gb DDR4 2133Mhz ECC LR Dimms Expandable to 3Tb (3,072Gb)
  • 16 x SAS/SATA 12Gb/S Drive Bays (4 x NVMe Ready)
  • 2 x Intel S3500 240GB Enterprise SSD Drives
  • 2 x Intel P3700 400GB Write Intensive NVMe SSD Drives 10 drive writes per day (DWPD)
  • DVD-RW Slimline Drive
  • 2 x 10GbE Intel X540 LAN Ports 1GbE compatible
  • Built in IPMI & Remote KVM over IP
  • 3 Years Warranty
  • Configure from: £6,295
  • Enquire
Broadberry CyberServe DB-800®
  • 800,000 IOPs
  • 2 x Intel® Xeon® Scalable Processor Gold Series
  • 96Gb DDR4 2133Mhz ECC LR Dimms Expandable to 3Tb (3,072Gb)
  • 16 x SAS/SATA 12Gb/S Drive Bays (4 x NVMe Ready)
  • 2 x Intel S3500 240GB Enterprise SSD Drives
  • 4 x Intel P3600 400GB Write Intensive NVMe SSD Drives 3 drive writes per day (DWPD)
  • DVD-RW Slimline Drive
  • 2 x 10GbE Intel X540 LAN Ports 1GbE compatible
  • Built in IPMI & Remote KVM over IP
  • 3 Years Warranty
  • Configure from: £8,950
  • Enquire
Broadberry CyberServe DB-1600®
  • 1,600,000 IOPs
  • 2 x Intel® Xeon® Scalable Processor Platinum Series
  • 128Gb DDR4 2133Mhz ECC LR Dimms Expandable to 3Tb (3,072Gb)
  • 16 x SAS/SATA 12Gb/S Drive Bays (4 x NVMe Ready)
  • 2 x Intel S3500 300GB Enterprise SSD Drives
  • 4 x Intel P3700 400GB Write Intensive NVMe SSD Drives 10 drive writes per day (DWPD)
  • DVD-RW Slimline Drive
  • 2 x 10GbE Intel X540 LAN Ports 1GbE compatible
  • Built in IPMI & Remote KVM over IP
  • 3 Years Warranty
  • Configure from: £12,499
  • Enquire

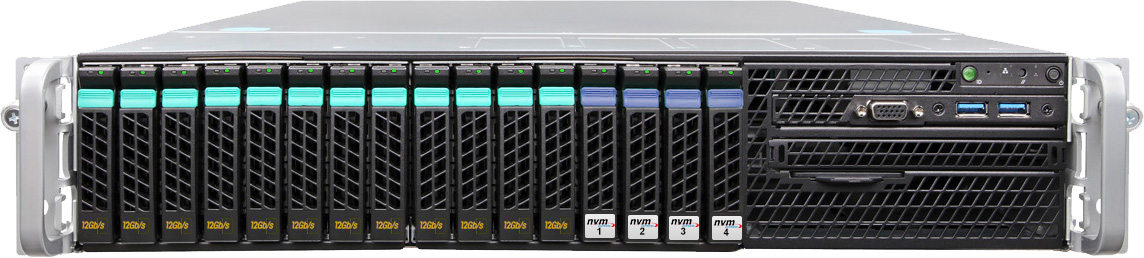

Built on the very latest Intel Xeon Scalable Processors, DDR4 EEC REG RAM and including nVME.

The 2U Platform has a maximum RAM capacity of 3TB can have up to 36 CPU cores and 8 terabytes of SSDs each supplying up to 1.6 million IPOS and with up the latest 10/40/56Gb ethernet connection outstanding performance is obtained. This server is ideally suited to SAP systems, Oracle and SQL applications.



Built on our Enterprise-Class, Reliable Hardware

We've been supplying the world's biggest brands with server and storage solutions since 1989, and in that time come to be known for our high quality, ultra-reliable hardware. We know your how important reliability is for your mission-critical database applications, which is why our the Broadberry database appliance is built to stay online, no matter what.


Powered by the Xeon Scalable Processor Family

Push your business further and faster, with solutions based on Intel® Xeon® Scalable processors. New features such as Intel® Advanced Vector Extension 512 (Intel® AVX-512) improve with workload-optimized performance and throughput increases for advanced analytics, high performance computing (HPC) applications, and data compression.

  • Up to 5x Analytics (4S database vs. installed base)
  • Up to 65% Lower total cost of ownership (TCO)

Powered by the Latest DDR4 RAM

Twice as fast, and delivering 50% more bandwidth all whilst reducing energy consumption by 40% over DDR4 memory, the Broadberry database appliance is built on the latest DDR4 memory high performance server memory.

  • Process data faster and double memory bandwidth to up to 17 GB/s.
  • DDR4 memory is designed to utilise higher density components, allowing DDR4 modules that are up to twice as dense.
  • DDR4 memory uses 20% less voltage than DDR4 technology, and operates at just 1.2V compared to 1.5V

Ultra-Performance NVMe Storage

Configured with ultra high-performance Intel NVMe drives, the Broadberry Database appliance can achieve far superior performance results than using other storage technologies.

Database Instance Database Size Startup Time (Minutes) Up to this many times faster…
HDD (1x Enterprise Drive) 100GB 31 minutes Baseline
HDD (15K 4x RAID 0 Drive) 100GB <11 minutes 2-3x Faster
SATA SSD (1x 6 Gbps) 100GB <4 minutes Up to 10X faster
Intel NVMe & PCIe P3700 100GB < 1 minute (50 sec) Up to 37X faster


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components that we use ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:
