1U Rackmount Servers, Intel Xeon E 2200 Series, Single Processor, 4x Hot Swap Drive Bays
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
The CyberServe Xeon E-104S has been carefully crafted to ensure full compatibility with VMWare, making it an ideal choice for use as a virtualisation server
The CyberServe Xeon E-104S is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.
This system can be configured with SATA drives for cost-effective 12gb/s storage.
Designed for dependability and energy-efficiency, the CyberServe Xeon E range of servers support the Intel Xeon E family of processors.
Powered by the latest Intel Xeon E family of processors, the Broadberry CyberServe Xeon E features up to 50% more cores than previous generation Xeon processors.
The Broadberry CyberServe Xeon E range of rackmount servers intelligently deliver significantly lower power consumption, whilst maintaining maximum energy processign performance.
All components in the Broadberry CyberServe Xeon E range are sourced from leading manufacturers who take reliability as seriously as we do.
All Broadberry CyberServe Xeon E rack servers come with iPMI functionality, enabling complete control and management of your server through IP.
The Broadberry CyberServe Xeon E range boasts DDR4 memory, up to twice as fast and delivering 50% more bandwidth and 40% more energy efficiency than DDR3.
The Broadberry CyberServe Xeon E range boasts Up to 40 lanes of PCIe for storage, graphics and network expandability.

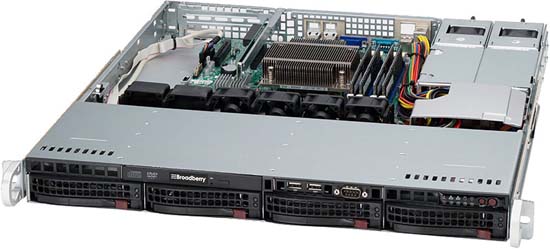

The CyberServe Xeon E-104S is a high density 1U rackmount server with 4x 3.5" hard drives.
Based on the Intel Xeon E 2200 series Processor, the CyberServe Xeon E-104S is a single processor server supporting up to 4 modules of DDR4 ECC RAM Modules - upto 64Gb.Dual, Quad or Eight Gigabit LAN Ports
The CyberServe Xeon E-104S is a 1U rackmount server configurable with 1x Xeon E Processor series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon E-104S has 4x 2.5", 3.5 SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 4x DDR4 ECC Unregistered memory banks providing up to 64GB of high-performance server memory. The CyberServe Xeon E-104S boasts VMware Compatible and Redundant Power Supply - Optional as just a few of its core features.The added benefit of hot-swap hard drives means that the CyberServe Xeon E-104S can have any of its 4 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
Comes Ready to Virtualise
VMWare compatibility ensures that the CyberServe Xeon E-104S will run the latest VMware software with full compatibility when used as a virtualisation server.
The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.
CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.
With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.
The CyberServe Xeon E-104S supports 4x 2.5", 3.5 desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.The added benefit of hot-swap hard drives means that the CyberServe Xeon E-104S can have any of its 4 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
Configure for your Network
The CyberServe Xeon E-104Sâ€™s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the CyberServe Xeon E-104S to match your application I/O demands and network infrastructure with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, PCI-Express I/O Cards.
Whether your application demands the highest networking throughput, or youâ€™re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon E-104S is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon E-104S at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the CyberServe Xeon E-104S components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The CyberServe Xeon E-104S IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the CyberServe Xeon E-104S with up to 1x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, PCI-Express I/O Cards. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon E-104S is a flexible platform for a wide-range of applications.The added benefit of hot-swap hard drives means that the CyberServe Xeon E-104S can have any of its 4 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.
You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".
We take security seriously. Broadberry servers offer the latest technologies including TPM, self-encryption and military-grade FIPS certification.
Best Price Guarantee
Broadberry offer a Best Price Guarantee on all server and storage solutions. You won't find the same spec cheaper anywhere else.
Ease of Management
Feature-rich IPMI with out of band management and redfish API to allow easy management and monitoring of your Broadberry systems.
Unlike other leading manufacturers, Broadberry assign all customers a dedicated account manager with direct access. There’s no call centres!
Our trained engineers will pre-configure your server to your requirements, and are here to help over the phone when your server arrives.
All Broadberry solutions come with a comprehensive 3-5 year warranty, with a range of upgraded warranty options available.
From clip-in slide rails to pre-configured RAID and pre-installed OS, our engineers ensure installation fast and simple!
Our open-platform approach offers high compatibility with your existing infrastructure and no vendor-lockin.
Every business is different. Configure every element of your solution to your requirements using our powerful online configurator.
Our servers are built to grow with your organization, whether that be by purchasing additional drives, or additional scale-out nodes.
Since the introduction of the first Broadberry PC in 1989, we’ve continually innovated and responded to emerging technologies and markets.
GSA Schedule Holder
We offer rapid GSA scheduling for custom configurations. For specific hardware requirements we can have your configuration posted on the GSA Schedule within 2-4 weeks.
Intel Xeon E3 Processors
Intel Xeon E Processors
|Max Turbo Frequency||4.2 GHz||4.8 GHz|
|Processor Base Frequency||3.7 GHz||3.8 GHz|
|Cache||8 MB||12MB SmartCache|
|Graphics||HD P530||Intel® UHD Graphics P630|
|TDP||65W - 80W||71W - 95W|
Now Faster Than Ever
By consolidating servers onto a VMware compatible Broadberry server, you can enjoy a reduction in your IT infrastructure footprint.
The virtualisation market has grown exponentially since the mid-2000s and as has the demand for servers able to run VMware virtualisation software. While the majority of servers will be able to run VMware, these rack servers have been specially designed and then sent off for VMware ESXI 6.0 certification.
Built from the ground up for compatibility, these servers are ideal for running your virtualised IT infrastructure.These VMware certified servers are based on hardware that is enterprise-grade and industry compliant. This range servers can be configured with up to 16 cores for processing and up to 1/2 TB of memory.
